LUTstructions: Self-loading FPGA-based Reconfigurable Instructions

By Philippos Papaphilippou, University of Southampton

Abstract

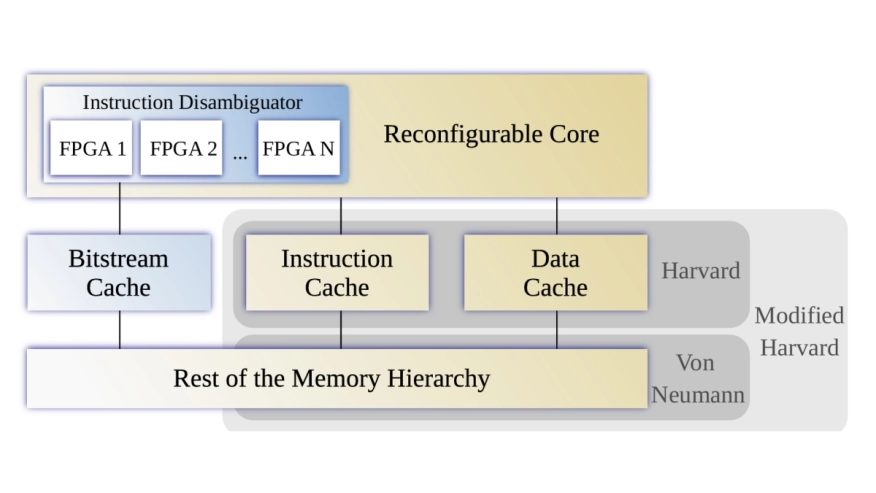

General-purpose processors feature a limited number of instructions based on an instruction set. They can be numerous, such as with vector extensions that include hundreds or thousands of instructions, but this comes at a cost; they are often unable to express arbitrary tasks efficiently. This paper explores the concept of having reconfigurable instructions by incorporating reconfigurable areas in a softcore. It follows a relatively-recently proposed computer architecture concept for seamlessly loading instruction implementation-carrying bitstreams from main memory. The resulting softcore is entirely evaluated on an FPGA, essentially having an FPGA-on-an-FPGA for the instruction implementations, with no notable operating frequency overhead. This is achieved with a custom FPGA architecture called LUTstruction, which is tailored towards low-latency for custom instructions and wide reconfiguration, as well as a soft implementation for the purposes of architectural exploration.

Keywords: FPGA, reconfigurable instructions, custom instruction, RISC-V, bit stream cache, soft instruction, eFPGA, virtual FPGA
