Lyra: A Hardware-Accelerated RISC-V Verification Framework with Generative Model-Based Processor Fuzzing
By Juncheng Huo 1,2, Yunfan Gao 1,2, Xinxin Liu 3,4, Sa Wang 1,2, Yungang Bao 1,2, Xitong Gao 3,5 and Kan Shi 1,2
1 SKLP, Institute of Computing Technology, Chinese Academy of Sciences
2 University of Chinese Academy of Sciences
3 Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences
4 Southern University of Science and Technology
5 Shenzhen University of Advanced Technology
Abstract

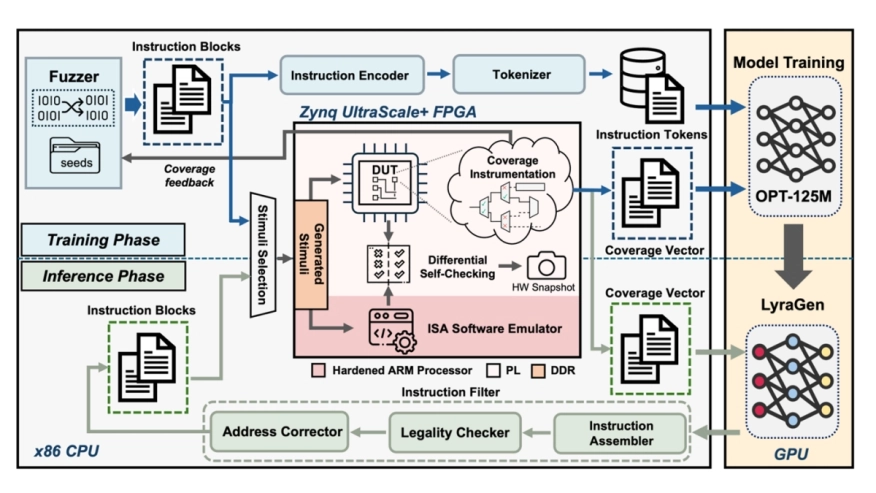

As processor designs grow more complex, verification remains bottlenecked by slow software simulation and low-quality random test stimuli. Recent research has applied software fuzzers to hardware verification, but these rely on semantically blind random mutations that may generate shallow, low-quality stimuli unable to explore complex behaviors. These limitations result in slow coverage convergence and prohibitively high verification costs. In this paper, we present Lyra, a heterogeneous RISC-V verification framework that addresses both challenges by pairing hardware-accelerated verification with an ISA-aware generative model. Lyra executes the DUT and reference model concurrently on an FPGA SoC, enabling high-throughput differential checking and hardware-level coverage collection. Instead of creating verification stimuli randomly or through simple mutations, we train a domain-specialized generative model, LyraGen, with inherent semantic awareness to generate high-quality, semantically rich instruction sequences. Empirical results show Lyra achieves up to 1.27× higher coverage and accelerates end-to-end verification by up to 107× to 3343× compared to state-of-the-art software fuzzers, while consistently demonstrating lower convergence difficulty.
Keywords: Verification, RISC-V, LLM, FPGA
To read the full article, click here
