A Persistent-State Dataflow Accelerator for Memory-Bound Linear Attention Decode on FPGA

By Neelesh Gupta ¹, Peter Wang ¹, Rajgopal Kannan ² and Viktor K. Prasanna ^1
1 University of Southern California, USA
² DEVCOM Army Research Office, USA

Abstract

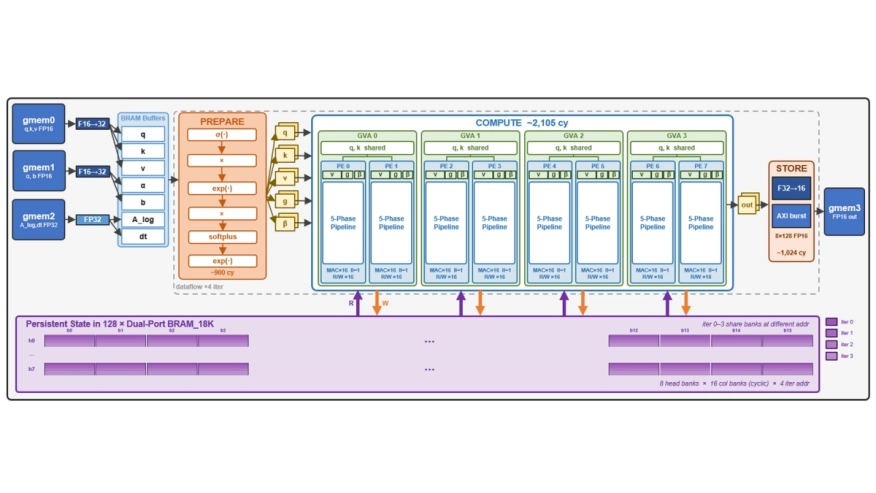

Gated DeltaNet (GDN) is a linear attention mech anism that replaces the growing KV cache with a fixed-size recurrent state. Hybrid LLMs like Qwen3-Next use 75% GDN layers and achieve competitive accuracy to attention-only models. However, at batch-1, GDN decode is memory-bound on GPUs since the full recurrent state must be round-tripped through HBM every token. We show that this bottleneck is architectural, not algorithmic, as all subquadratic sequence models exhibit arithmetic intensities below 1FLOP/B at decode time, making them more memory-bound than standard Transformers. We present an FPGA accelerator that eliminates this bottleneck by holding the full 2MB recurrent state persistently in on chip BRAM, converting the workload from memory-bound to compute-bound. Our design fuses the GDN recurrence into a five-phase pipelined datapath that performs only one read and one write pass over each state matrix per token, exploits Grouped Value Attention for paired-head parallelism, and overlaps preparation, computation, and output storage via dataflow pipelining. Weexplore four design points on an AMD Alveo U55C using Vitis HLS, varying head-level parallelism from 2 to 16 value-heads per iteration. Our fastest configuration achieves 63µs per token, 4.5× faster than the GPU reference on NVIDIA H100 PCIe. Post implementation power analysis reports 9.96W on-chip, yielding up to 60× greater energy efficiency per token decoded.

Index Terms — FPGA Accelerator, Linear Attention, Gated DeltaNet, LLM Decode, Dataflow Architecture
