The CXL Verification IP provides an effective & efficient way to verify the components interfacing with CXL interface of an IP or SoC. The CXL VIP is fully compliant with latest CXL specifications. This VIP is a light weight with an easy plug-and-play interface so that there is no hit on the design cycle time.
CXL 3.2 Verification IP
Overview
Key Features
- Compliant with the CXL 3.2, 2.0 & 1.1 Specification.
- Support for all three protocols CXL.IO, CXL.CACHE & CXL.MEM including all CXL device types
- Support for PCIE Mode & Alternate Protocol Negotiation for CXL Mode
- Support for 256B flit in 64GT/s with PCIe Gen 6 as well as 32/16/8 GT/s speeds with backward compatibility.
- Support for different CXL/PCIe Resets.
- Support for CPI v1.0 (CXL-CACHE/MEM Protocol Interface), CXS B (Credited eXtensible Stream), LPIF v1.1 (Logical PHY Interface) and PIPE v6.2.
- Support for block level verification.
- Support for SerDes PIPE Architecture as well as Original PIPE Architecture.
- Configurable PIPE width support:
- Original PIPE Arch. - 8, 16, 32, 64
- SerDes PIPE Arch. - 10, 20, 40, 80.
- Support for CXL.IO throttling.
- Support for NOP insertion hint performance optimization.
- Support for Low Pin Count Interface as well as Legacy PIPE Interface.
- Support for CXL Retry Mechanism.
- Support for 68B and 256B flit structure.
- Support for CXL 3.2 Configuration and Memory Mapped Registers (For CXL Device and Ports).
- Support for CXL ALMP transmission and reception to control virtual link state machine and power state transition requests.
- Support for CXL ACK forcing & Link Layer Credit exchange mechanism.
- Support for Arbitration among the CXL.IO, CXL.CACHE and CXL.MEM packets with Interleaving of traffic between different CXL protocols.
- Support for randomization and user controllability in flit packing.
- Support for power management including the low power L1 with sub-state and L2.
- Support for CXL in band control message with CXL 3.2. (Viral & Poison)
- Support for Credit exchange field within 256B flit.
- Support for all 3 coherency models HDM-D, HDM-H and HDM-DB to access HDM memory.
- Support for PBR TLP for CXL.IO
- Support for Back Invalidate transactions.
- Support for RAS error logging & Signalling.
- Support for Extended Metadata.
- Support for Bogus, Viral, Global Persistent Flush and Data Object Exchange.
- Support for IDE.
- Support for QOS telemetry for memory.
- Provides two types of routing mechanism. (HBR and PBR).
- Provides a comprehensive user API (callbacks).
- Provides two types of 256B flits mechanism (Standard 256B flit & Lopt 256B flit).
- Provide Compliance test support.
Benefits
- Available in native System Verilog (UVM/OVM/VMM) and Verilog.
- Unique development methodology to ensure the highest levels of quality.
- 24X5 customer support.
- Unique and customizable licensing models.
- Exhaustive set of assertions, cover points with connectivity example for all the components.
- Consistency of interface, installation, operation, and documentation across all our VIPs.
- Provide complete solution and easy integration in IP and SoC environment.
- On-the-fly protocol checking using protocol check functions, static and dynamic assertion.
- Provides a comprehensive user API (callbacks).
- Graphical analyzer for easy debugging, regression analysis, performance, statistics and charts.

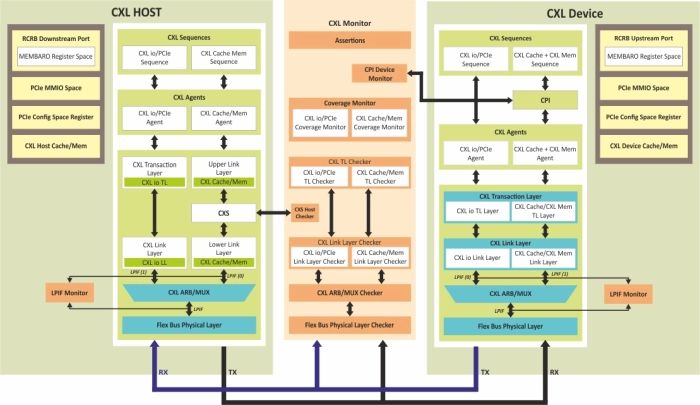

Block Diagram
Deliverables
- CXL Host/Device
- CXL Switch
- CXL BFM/Agents for:
- Host and Device sequences
- Transaction layer(CXL.IO and CXL.cache, CXL.mem)
- Link layer(CXL.IO and CXL.cache, CXL.mem)
- Arbiter/Mux layer
- PHY layer
- CXL Monitor and Scoreboard
- Test Environment & Test Suite:
- Basic and Directed Protocol Tests
- Random Tests
- Error Scenario Tests
- Cover Point Tests
- Compliance Tests
- Documents:
- Integration Guide
- User Manual
- Quick Start Guide, Release Notes
- FAQs
