64G SerDes
Key Features
- 4 Channels per Quad, ≤64Gbps; PAM4 support 25~64Gbps; NRZ support 2.5~32Gbps
- Serialization/Deserialization interface width; 64/32/16bits; 64-bit parallel data path in PAM4 mode; 32-bit parallel data path in full-rate NRZ mode; 16-bit and 32-bit parallel data path widths in half-rate and quarter-rate modes
- Four programmable transmitter and receiver configurations selectable by port by using hardware pins or registers. Facilitates fast speed switching during speed negotiation routines
- Aggressive equalization capability to enable 64Gbps operation and legacy system upgrades
- Feed Forward Equalization (FFE) driver equalization
- Adaptive and configurable RX Continuous Time Linear Equalizer (CTLE), Feed Forward Equalizer (FFE) and Decision Feedback Equalizer (DFE)
- Digital-based receiver consisting of the following: Analog Front-End (AFE) Analog-to-Digital Converter (ADC) Digital Signal Processor (DSP)
- Digitally-control-impedance termination resistors;
- Configurable Tx output differential voltage swing;
- Support for manufacturing and system test
- Generalized scan design compliant with manufacturing functional (macro) tests
- Full-rate loopback and Built-In Self-Tests (BIST) with selectable PRBS patterns
- Compatible with IEEE 1149.6-2003 ACJTAG
- Supports Flip-Chip package

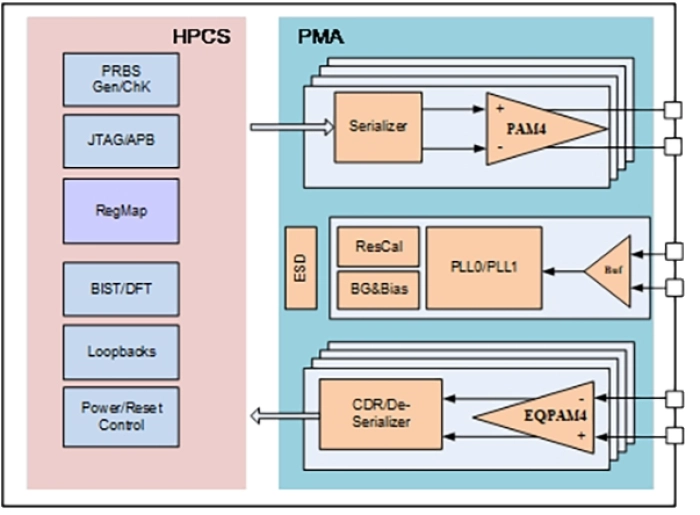

Block Diagram

Deliverables
- GDSII&CDL Netlist
- Verilog Model
- LEF Layout Abstract(.LEF)
- Liberty Timing Models(.lib)
- Verify Results
- Specification
- Datasheet
- Integration Guideline
- Evaluation Plan
- Leading support for package design, SI&PI modeling and production test development
