V-by-One® HS Tx IP / V-by-One® HS Rx IP

Overview

High-speed serial interface compliant with V-by-One® HS standard

V-by-One® HS IP is an IP to achieve V-by-One HS high-speed video interface technology. V-by-One® HS is a standard for next-generation high-speed interface technology developed by THine Electronics for image and video equipment requiring higher frame rates and higher resolutions. Implementing the V-by-One HS IP in Altera FPGA reduces the number of signals compared with conventional LVDS interfaces, which greatly reduces product cost.

Specifications

  Transmitter IP Receiver IP
Lane 1～32
Pixel Data 24,32,40 bit
Self Test Function FieldBET Pattern Generator FieldBET Pattern Checker



Supported Devices

  • Intel® Agilex™ 7(F Tile)
  • Intel® Stratix® 10 GX( H/L Tile )
  • Intel® Arria® 10 GX
  • Intel® Cyclone® 10 GX

Example Resource Utilization (Intel® Arria® 10 GX)

  • RX
  2Lane 4Lane 8Lane 32Lane
ALMs 2,419 4,640 9,262 37,265
registers 4,977 9,956 19,914 79,309
  • TX
  2Lane 4Lane 8Lane 32Lane
ALMs 1,531 3,067 6,709 24,542
registers 2,814 5,567 11,276 45,076

Key Features

  • Achieves 4-Gbps maximum transmission rate per lane (however, depends on the FPGA used)
  • Supports custom video formats as well as VESA, SMPTE, and other standardized formats
  • Supports flexible multi-lane designs in accordance with user's total transmission rate requirement
  • Self-check function (FieldBET) to test connectivity between transmitter and receiver IPs

Block Diagram

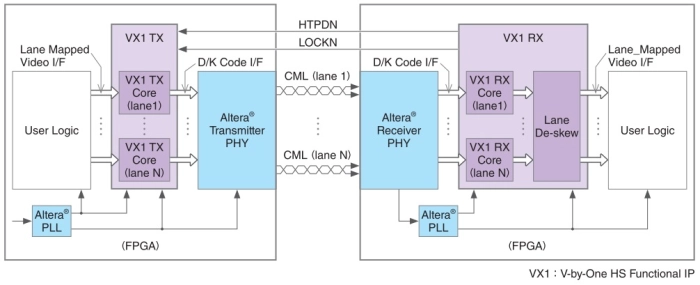

V-by-One® HS Tx IP / V-by-One® HS Rx IP Block Diagram

Deliverables

  • Encrypted RTL (Verilog HDL)
  • Reference design
  • Simulation environment (For ModelSim)
  • User's manual
  • Reference design user's guide
