USB 2.0 PHY IP core

Overview

The USB 2.0 PHY IP core is a transceiver compliant with the USB 2.0 Transceiver Macrocell Interface Plus (UTMI+) level 3 specification, for use with host, embedded host, On-the-Go (OTG) and function controllers. Its high speed, mixed-signal circuitry supports 480 Mb/s USB 2.0 High Speed (HS) traffic, while remaining backward compatible with USB 1.1 legacy protocol for 12Mb/s Full Speed (FS) traffic and 1.5Mb/s Low Speed (LS) traffic.

Arasan’s USB 2.0 PHY IP is also offered as a crystal-less PHY saving on the BoM.

The USB 2.0 PHY IP core performs low-level protocol and signaling functions. While transmitting, the PHY serializes data, generates Synchronize (SYNC) and End-of-Packet (EOP) packet fields, and performs bit stuffing and Non-Return-to-Zero Inverted (NRZI) encoding. While receiving data, the PHY recovers incoming data and clock, de-serializes data, strips SYNC and EOP fields, and performs bit un-stuffing and NRZI decoding.

FULL-FEATURED USB 2.0 PHY

The USB 2.0 PHY IP is a full-featured on-chip physical transceiver. It has Electro Static Discharge (ESD) protection and fully supports all OTG and host functionality. An optional charge pump generates a 5V supply to power external USB peripherals while in host mode. On-board clock generation and PLL blocks provide for accurate, high-speed data transmission from and to the transceiver. When this USB PHY core is used, a minimal number of external components is required.

Arasan is the among the industry’s first providers of USB IP with the launch of its USB 1.1 Device IP in 1996 and the industries ONLY provider to offer a Total USB 2.0 IP Solution which includes its USB 2.0 Host IP Core, USB 2.0 Device IP Core, USB 2.0 Hub IP, USB 2.0 OTG IP, the USB 2.0 PHY IP and software for multiple OS.

Key Features

  • Complies with USB specifications, rev. 2.0 and 1.1
  • Complies with UTMI+ specification, level 3, rev. 1.0
  • Supports 480Mb/s (HS), 12Mb/s (FS) and 1.5MB/s (LS) serial data transmission rates
  • Supports 8-bit unidirectional Parallel Interface Engine (PIE) bus for HS, FS and LS modes, and Serial Interface Engine (SIE) for FS and LS modes
  • Supports USB 2.0-defined test modes
  • Supports OTG USB 2.0
  • Supports single-ended data interface
  • Digital I/O for Tx and Rx USB OTG cable status
  • Rail-to-rail common mode differential receiver
  • NRZI encoding and decoding
  • SYNC and EOP generation and detection
  • Bit stuffing and un-stuffing with error detection
  • Optional Charge Pump
  • Short-circuit protection for Charge Pump
  • Supports full junction temperature range of -40°C to 125°C
  • Dual 3.3V/1.2V supply
  • Integrated HS and FS/LS terminations
  • Area <1mm2 at 130nm
  • On-chip decoupling capacitors to minimize digital switching noise
  • Also offered as crystal-less PHY

Benefits

  • Silicon proven

Block Diagram

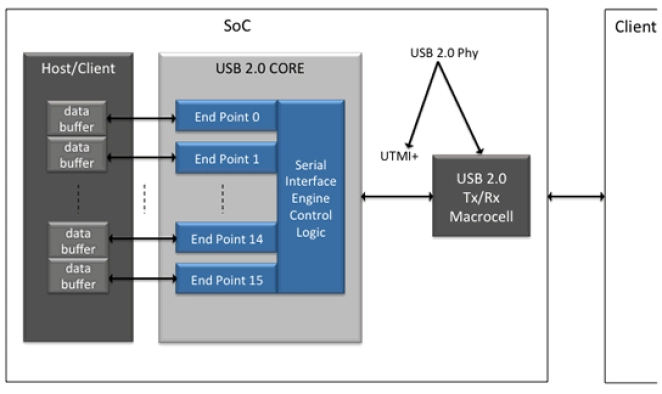

USB 2.0 PHY IP core Block Diagram

Deliverables

  • GDSII layout and layer map
  • Place-and-route views (.lib, .lef)
  • LVS and DRC verification reports
  • Verilog Sim Model (NC-Verilog)
  • Gate-level netlist and SDF timing
  • Test guidelines, layout guidelines and application notes
