RFicient®Basic, Ultra-Low-Power WakeUp Receiver – this IC solution will allow customers to optimize the power consumption for i.e. IoT applications. Thereby battery lifetime could be increased dramatically. The integrated receiver continuously monitors a radio channel while boasting a very low current consumption of 2.5 μA with a response time of only 32 ms.

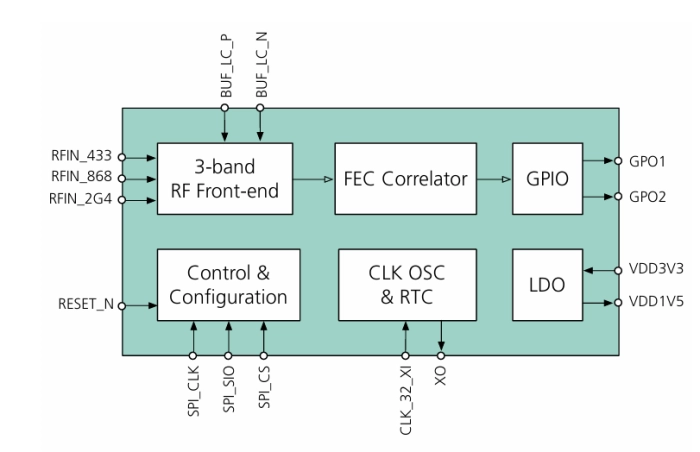

RFicient®Basic provides single or simultaneous multiband operation in the frequency bands 433 MHz, 868/915 MHz and 2.4 GHz for global and reliable wireless connection. The integrated ULP receiver was developed in standard CMOS technology and achieves a receiver sensitivity of -80 dBm.
The receiver operates without the use of a microcontroller and recognizes two separate wake-up patterns. After receiving a specific wake-up pattern, a digital control signal is generated to activate any application hardware like a MCU.
The possibility of selective addressing allows single nodes, entire sensor networks or dedicated groups to be addressed individually. The receiver has an on-chip LDO and can therefore be operated directly on a single 3V power supply. An integrated 32 kHz real time clock crystal oscillator allows independent operation and provides long-term timers up to 1 year as well as 16 bit cyclic timers up to 2 seconds. This allows the microcontroller to be operated in deep sleep mode to save power.
