130GF_RFID_EPCGen2_01 IP is intended for use in passive UHF transponder applications. IP derives its operating power from an RF electromagnetic field generated by a reader, which is received and rectified by the IP. The tag IP sends the answer back to the reader using a backscatter modulation technique. RFID EPCGen2 IP provides a fast and flexible anti-collision protocol based on internal random number generator according to EPC standard. IP supports all EPC C1G2 mandatory commands. The IP contains an embedded 3.6Kbit EEPROM organized in 4 banks. IP has 2 operation modes: passive mode and Battery assisted passive (BAP) mode.
UHF RFID tag IP with 3.6kBit EEPROM and -18dBm sensitivity
Overview

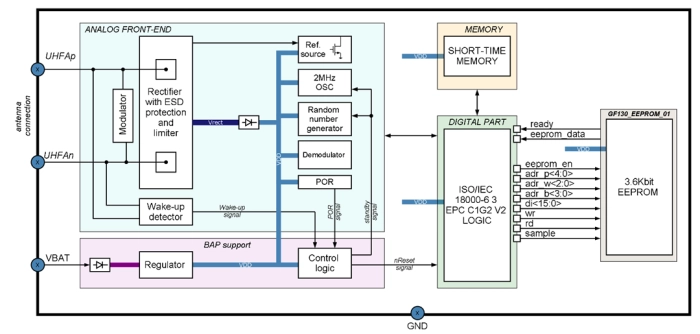

Block Diagram
Technical Specifications
Short description
UHF RFID tag IP with 3.6kBit EEPROM and -18dBm sensitivity
Vendor
Vendor Name
Foundry, Node
GF Embedded EEPROM 130 nm
Maturity
silicon proven
GLOBALFOUNDRIES
Silicon Proven:
130nm
