The temperature sensor indicates the junction temperature as a 9-bit binary digital code. It contains a main sensor, remote probes and an Analog-to-Digital Converter (ADC). It is possible to monitor multiple spots via remote probes. It has a resolution of 0.5℃/1-code and operates within a junction temperature range of -40℃ to 125℃.
Temperature Sensor on Samsung 4nm, LN04LPP
Overview
Key Features
- 4nm Low Power Plus (LN04LPP) CMOS device technology
- Dual power supply: 1.2V±10%, 0.75V±10%
- Operating junction temperature(TJ): -40℃ to125℃
- Resolution: 0.5°C
- Accuracy: ±3°C
- Junction temperature(TJ) sensing
- Multiple hot spots monitoring via remote probes
Benefits
- Low Power
- Low Area

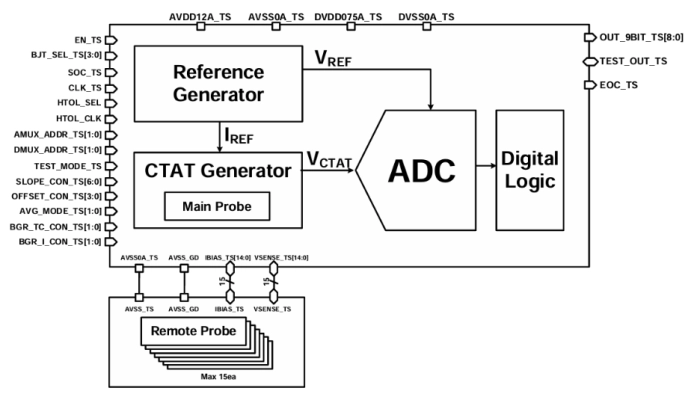

Block Diagram

Applications
- Mobile
- Automotive
Deliverables
- FE(Front-End) : LEF, LIBERTY, MODEL, TB FUNCTION, TB VECTOR GEN
- BE(Back-End) : CIR, DFM, DRC, GDS, LVS
Technical Specifications
Short description
Temperature Sensor on Samsung 4nm, LN04LPP
Vendor
Vendor Name
Foundry, Node
SF 4nm,LN04LPP
Samsung
Pre-Silicon:
4nm
