The SPI_MASTER IP Core is an SPI compliant serial interface controller capable of driving up to 16 different slave devices in full-duplex operation. The controller receives data and instructions via the master instruction interface. These instructions are then processed by the controller core in order to generate the appropriate signals on the SPI bus. The serial slave data on the SPI bus is also captured by the controller and de-serialized for presentation at the slave read data port.

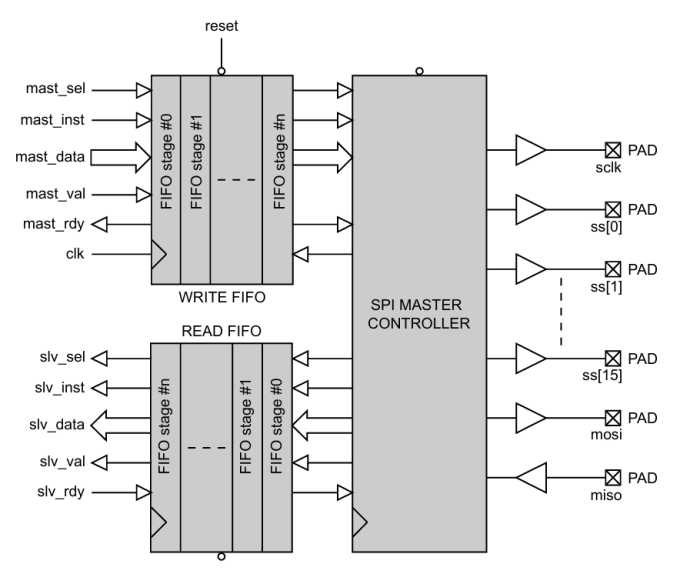

The SPI master controller is comprised of three main blocks. These blocks are the master instruction write FIFO, the SPI controller core and the slave read-data output FIFO.
The serial clock-period is determined by the generic parameter t_period. This parameter specifies the sclk period in system clock cycles. As an example, if the system clock 'clk' is running at 130 MHz and a serial clock frequency of 10 MHz is required, a value of t_period = 13 should be specified. In addition, the generic parameters cpol and cpha permit the clock polarity and phase characteristics to be specified as per the SPI specification. The table below shows a brief summary of these settings.
