SD 3.0 / SDIO 3.0 / eMMC 5.1 Host Controller IP

Overview

The SD 3.0/SDIO 3.0/eMMC 5.1 Host IP is a highly integrated host controller IP solution that supports three key memory card I/O technologies:

SD 3.0
SDIO 3.0
eMMC 5.1

The SD 3.0 / eMMC 5.1 Host IP handles all of the timing and interface protocol requirements to access these media as well as processing the commands in hardware thereby scaling in both performance and access speeds. The IP supports connection to a single slot and performs multi-block writes and erases that lower access overhead. In addition, a host can utilize this IP to boot directly from an attached eMMC memory, thereby simplifying system initialization during power up. The host interface is based on a standard 32-bit AHB bus which is used to transfer data and configure the SD 3.0 / eMMC5.1 Host IP.

eMMC 5.1 is backward compatible to the previous versions.

Key Features

eMMC 5.1 features

Compliant with eMMC Specification Version 5.1
AMBA AXI Specification Version 3.00 (Standard)
AMBA AHB Specification Version 2.00 (Optional)
OCP specification Version 2.2 (Optional)
Host clock rate variable between 0 and 200 MHz
Supports one of the following System/Host Interfaces: AHB, AXI or OCP
Data transfer using PIO mode on the Host Bus Slave interface, using DMA mode on the Host Bus Master interface. Here the Host Bus is AHB or AXI or OCP Interface
Supports eMMC5.1 Security Protocol Commands
Supports 32-bit and 64-bit system bus
Configurable FIFO size to support different block sizes
Supports Interrupts and wake up functionality
Supports Internal Clock divider for various card operational modes
HS400 high speed interface timing mode of up to 400 MB/s data rate
Field firmware update
eMMC device health report
eMMC production state awareness
Secure removal types
Backward compatible to 1-bit, 4-bit and 8-bit modes
Supports Primary & alternate boot modes
Supports Packed commands, Data Tags, Discard & Sanitize features
Supports 4KB block support
Supports Tuning for HS200 mode
Cyclic Redundancy Check CRC7 for command and CRC16 for data integrity
Supports MMC Plus and MMC Mobile
Password protection of Cards

SD Host Controller Spec v3.0* (SDXC)

SDIO Spec v3.0
SD Memory Spec v3.01
eSD Memory Spec v2.1

Benefits

RTL design in Verilog
UHS-I PHY GDSII
Easy-to-use test environment
Synthesis scripts
Technical documentation

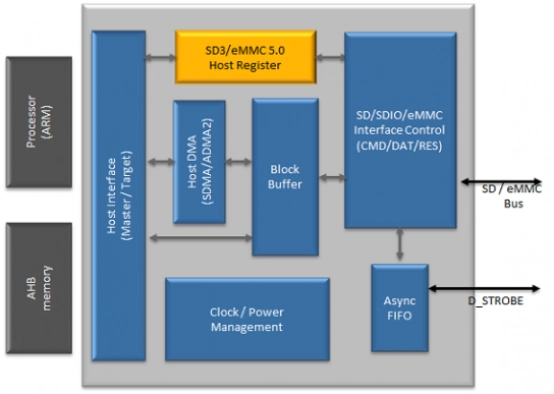

Block Diagram

Deliverables

RTL design in Verilog
UHS-I PHY GDSII
Easy-to-use test environment
Synthesis scripts
Technical documentation

Technical Specifications
