The PVT sensor indicates the junction temperature as a 12-bit binary digital code. It contains a main sensor, remote probes and an Analog-to-Digital Converter (ADC). It is possible to monitor multiple spots via remote probes. It has a resolution of 0.0625℃/1-code and operates within a junction temperature range of -40~125℃.
PVT Sensor on Samsung 4nm, LN04LPP
Overview
Key Features
- 4nm Low Power Plus (LN04LPP) CMOS device technology
- 1.2V±10%, 0.75V±10% dual power supply
- Operating junction temperature(TJ): -40~125℃
- PVT sensor resolution: 0.0625℃
- PVT sensor accuracy: ±3℃
- Voltage sensing range: 0.25~0.95V
- Voltage sensor resolution: 0.5mV
- Process sensor type: ULVT, SLVT, LVT, RVT
- Junction temperature(TJ) sensing
- Multiple hot spots monitoring via remote probes
Benefits
- Low Power Consumption
- small area

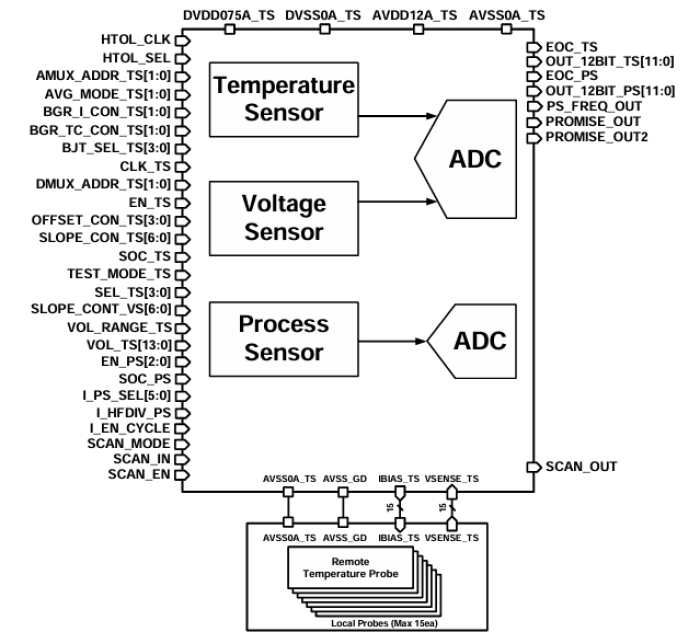

Block Diagram

Applications
- Mobile/Consumer/Automotive/HPC
Deliverables
- FE (Front End) : MODEL, TB FUNCTION, LIBERTY, TB VECTOR, LEF
- BE (Back End) : CIR, GDS, LVS, DRC, DFM
- Document : Datasheet, Test guide, User guide, Release note
Technical Specifications
Short description
PVT Sensor on Samsung 4nm, LN04LPP
Vendor
Vendor Name
Foundry, Node
SF 4nm, LN04LPP
Samsung
Pre-Silicon:
14nm
