On-Die PDN Analyzer for Transistor-Level Visibility and Telemetry

Overview

The Aeonic Insight™ PDN IQ is an in-situ, on-die PDN (Power Delivery Network) analyzer providing transistorlevel PDN telemetry at nanosecond scale. The telemetry provided can be applied across the silicon lifecycle to optimize power, performance, and reliability. PDN IQ can be used to characterize V-F curves to develop an optimal setpoint to balance power and performance. It can be utilized during production test to improve DPPM rates. And in the field, it can be used to monitor device health to increase fleet uptime, as well as for testing and tuning of new workloads (e.g., training) before mass deployment across the fleet.

Aeonic Insight PDN IQ enables real-time alerts as the chip’s PDN reaches or surpasses production-set parameters (e.g., worst case droop, slew rate, etc.). And it can also be integrated with an SoC’s cross-trigger matrix to enable nanosecond-scale, time-stamped tracing of voltage data that can be leveraged in multiple ways from bring up to in-field workload management.

The Movellus Aeonic Insight product family is intrinsically flexible because it is built with synthesizable Verilog. Movellus’ expertise lies in converting traditionally analog functions to digital, allowing the company to develop a synthesizable feature-rich digital IP. With proven process portability and minimal area footprint, Aeonic IP products are ideally suited for large-scale distribution within an SoC.

Use Cases

  •  V-F curve characterization
  •  Production screening for DPPM optimization
  •  In-Field health monitoring
  •  In-Field workload characterization

Key Features

  •  Transistor level PDN visibility at nanosecond scale
  •  PDN telemetry and onboard analytics across the silicon life cycle
  •  Cross-trigger matrix interface for sophisticated tracing, including look behind capability
  •  Process portable

Block Diagram

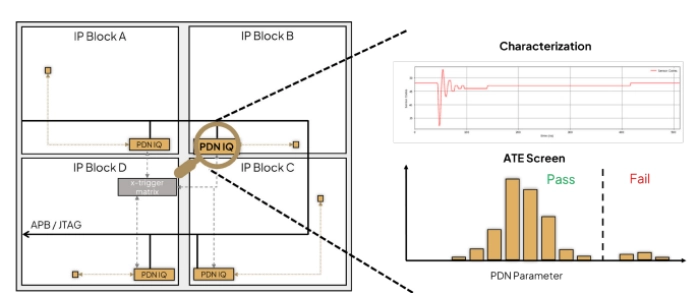

On-Die PDN Analyzer for Transistor-Level Visibility and Telemetry Block Diagram

Applications

  • Edge AI
  • Datacenter AI training and inferencing
  • Networking
  • CPU & GPU
  • Mobile power optimization
  • Automotive power monitoring

Technical Specifications

×
Semiconductor IP
