Octuple 20uA Bias Current Source

Overview

The TS_CS_20uA_X8 is a current generator sourcing 20µA via each terminal IBPU<0> through IBPU<7>, for the biasing of other TES IPs like TS_FS_9M70_X8 and TS_VA_LNDC_X8 (for the latter IP, its input reference current must be mirrored from one Bias output by a simple cascoded NMOS circuit).

The Bias operates with two supply voltages, VDDA4 (4V typical) for its main function and VDDA5, VDDA5IO (5V typical) for the test-bus (ATB) circuit. It requires one precision reference voltage VREF (2.5V).

Precision current trimming is achieved under control of the 5-bit calibration input CAL<4:0>.

This IP supports analog-test-bus multiplexing on the ATB_OUT output under control of the 5-bit address input ATB_ADR<4:0>. When ATB_ADR<4:0>= LLLHH, the Bias sources a 20µA current replica to ATB_OUT for off-chip measurement.

This IP complies with 2kV electrostatic discharges on its analog terminal ATB_OUT.

The minimum continuous operation lifetime spans 100000 hours.

 Operating conditions

Parameters Values
Junction temperature range 20ºC to +80ºC
Supply voltages VDDA5, VDDA5IO: 4.9V to 5.1V ; VDDA4: 3.9V to 4.1V (supplied by the additional IP TS_VR_4V00_X8)
Reference voltage VREF: 2.5V
Voltage at IBPU<7:0> terminals 2V max
EN, CAL<4:0> logic-high voltage level VDDA4
ATB_ADR<4:0> logic-high voltage level VDDA5

Specification

Parameters Values
Calibrated output bias current intensity per IPBU output 20.0µA±0.5µA
Start-up time 2µs max
PSRR over frequencies from DC up to 10 MHz 5%/V max
Operating power consumption with unused IBPU<7:0> 765µW max
Powerdown-mode current consumption Enable EN low 11nA max
Area 0.031mm²

FB_IN and FB_OUT must be interconnected.

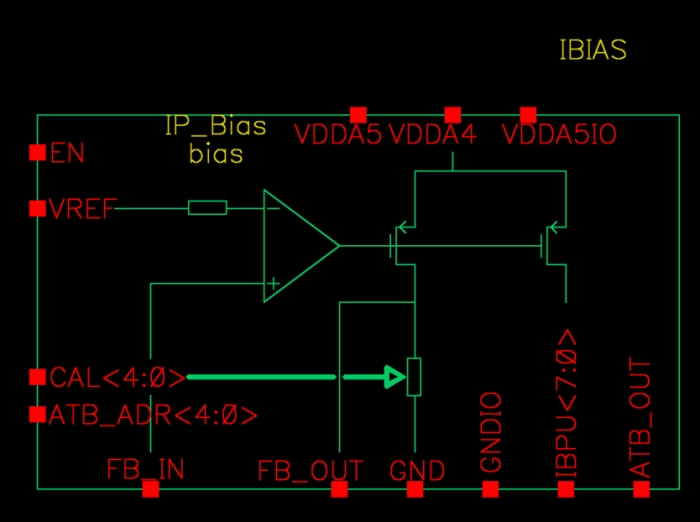

Block Diagram

Octuple 20uA Bias Current Source Block Diagram

Technical Specifications

Short description
Octuple 20uA Bias Current Source
Vendor
Vendor Name
Foundry, Node
XFAB XT018 - 0.18µm HV SOI CMOS
Maturity
silicon proven
×
