The MIPI Display Serial Interface (DSI-2) Receiver (display panel interface) Controller IP provides a high-speed serial interface between an application processor and display modules using either MIPI C-PHY v1.1 or MIPI D-PHY v1.2 and v2.0.
MIPI DSI-2 Receiver IP Controller Core
Overview
Key Features
Compliant with the following MIPI specifications
- Display Serial Interface (DSI-2) version 1.0
- Display Pixel Interface (DPI-2) version 2.00
- Display Bus Interface (DBI) version 2.00
- Display Command Set (DCS) version 1.3
- D-PHY version 1.2
- D-PHY 2.0 and CPHY 1.1 (Combo PHY)
Benefits
- Fully compliant to MIPI standard
- Small footprint
- Code validated with Spyglass
- Functionality ensured with comprehensive verification
- Product quality proven with silicon
- Premier direct support from Arasan IP core designers

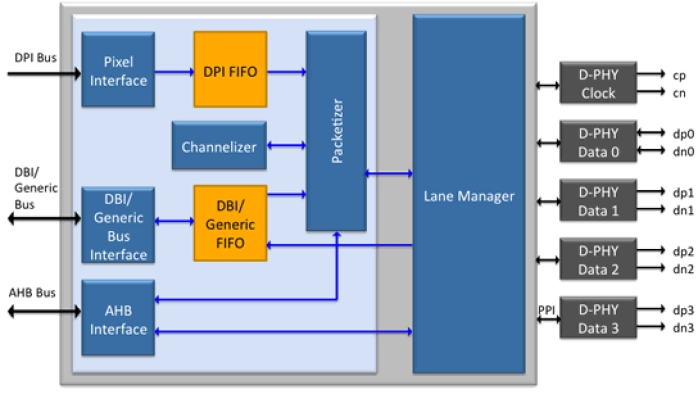

Block Diagram
Deliverables
- Verilog HDL of the IP Core
- Synthesis scripts
- Verification environment
- User guides for design and verification
