MIPI D-PHY v2.1 IP Core

Overview

The MIPI® D-PHY is compliant to the MIPI D-PHY Specification v2.1.

This specification is primarily intended to define a solution for a bit-data rate range of:

  • 80 to 1500 Mbps per Lane without de-skew calibration
  • up to 2500 Mbps with de-skew calibration,
  • up to 4500 Mbps with equalization.

When the DUT implementation supports a data rate greater than 1500 Mbps, it shall also support de-skew capability. When a PHY implementation supports a data rate more than 2500 Mbps, it shall also support equalization, and Spread Spectrum Clocking shall be available.

Arasan D-PHY IP Core is seamlessly integrated with Arasan’s MIPI CSI IP and DSI IP Controller Cores.

Arasan offers industry’s broadest portfolio of foundry and process technology support for MIPI D-PHY. The MIPI D-PHY IP is available in foundry processes spanning 7nm to 180nm. Arasan specializes in porting Analog Transceiver IP Cores to new foundry processes.

Arasan’s MIPI® D-PHY IP Core is fully compliant to the D-PHY specification version 2.1. It provides a point to point connection between master and slave or host and device that comply with a relevant MIPI®

Key Features

  • Compliant to MIPI® Alliance Standard for D-PHY specification Version 2.1
  • Supports D-PHY 1.1 synchronous transfer mode at high speed mode with a bit rate of 80-1500 Mb/s without deskew calibration
  • Supports DPHY 1.2 for 1500 – 2500 Mb/s with deskew calibration.
  • Supports DPHY 2.1 for 2500 – 4500 Mb/s with deskew calibration.
  • Asynchronous transfer at low power mode with a bit rate of 10 Mb/s
  • Spaced one hot encoding for Low power [LP] data
  • One clock lane and four data lanes
  • On-chip clock generation configurable for either transmitter or a receiver
  • Clock lane supports unidirectional communication
  • On-chip clock generation configurable for either receiver
  • Data lanes support transfer of data in high speed mode.
  • Features include ultralow power mode, high speed mode and control mode.
  • Has clock divider unit to generate clock for parallel data transmission from and to the PPI
  • Supports standard PHY receiver and PPI interface compliant to MIPI Specification
  • Testability for Analog Rx with DLL and DFE.
  • Supports High speed mode in Forward communication and for Stuck-At Scan for Digital Testing
  • Runs off 0.8V+/-10%, 1.2V+/-10%, 1.8V +/- 10% supply
  • Has inbuilt calibration to calibrate RX impedance. Also, can manipulate those impedance manually through trim registers
  • Supports polarity swap

Benefits

  • Silicon proven, fully compliant core
  • Extensive Quality Methodology
  • Premier direct support from Arasan IP core designers
  • Easy-to-use industry standard test environment
  • Available in various foundry processes
  • No external (off-chip) components required
  • Can be ported to other processes

Block Diagram

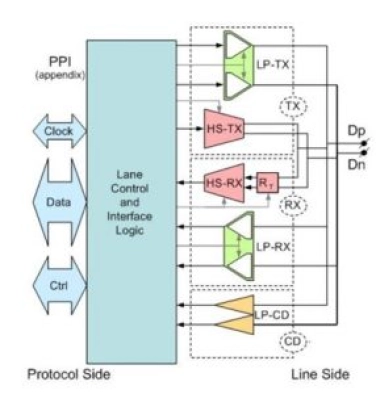

MIPI D-PHY v2.1 IP Core Block Diagram

Deliverables

  • GDS-II Database
  • LVS Netlist
  • Physical Abstract Models (LEF)
  • Timing Models (LIB)
  • Process Specific Integration Guide
  • Technical Documentation
