MIPI D-PHY/LVDS Combo Receiver IP

Overview

The MXL-LVDS-MIPI-RX is a high-frequency, low-power, low-cost, source-synchronous, Physical Layer that supports the MIPI® Alliance Standard for D-PHY and compatible with the TIA/EIA-644 LVDS standard.

The IP is configured as a MIPI slave and consists of 5 lanes: 1 Clock lane and 4 data lanes, which make it suitable for display serial interface applications (DSI).

The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed Data traffic while low power functions are mostly used for control.

Key Features

  • Consists of 1 Clock lane and 4 Data lanes
  • Up to 4.0 Gbps data throughput
  • Supports the MIPI Standard 1.0 for D-PHY
  • Compatible with TIA/EIA-644 LVDS standard
  • Supports both high speed and low-power modes
  • 80 Mbps to 1 Gbps data rate in MIPI high speed mode
  • 140 Mbps to 945 Mbps data rate in LVDS high speed mode
  • 10 Mbps data rate in low-power mode
  • High Speed De-Serializers included
  • Low power CMOS design
  • Power down mode
  • 1.2V/3.3V dual power supply

Block Diagram

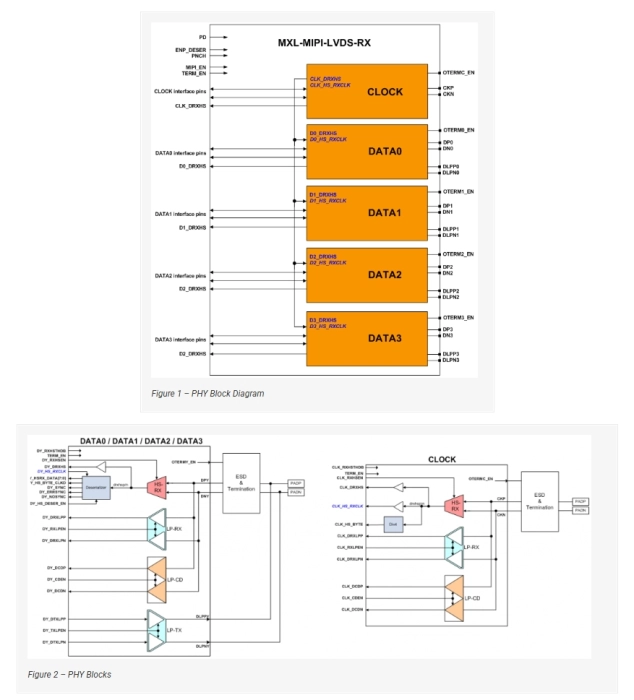

MIPI D-PHY/LVDS Combo Receiver IP Block Diagram

Technical Specifications

TSMC
Silicon Proven: 110nm G
×
