This Tx/Rx transceiver complies with the MIPI Alliance C-PHY℠ v2.0 and D-PHY℠ v2.5 specifications, with world-class area and power dissipation, and is available for a range of foundry processes. This IP delivers 6 Gbps per lane for a max throughput of 24 Gbps in D-PHY℠ mode, and 6 Gsps per trio for a max throughput of 41.04 Gbps in C-PHY℠ mode. The C/D-PHY IP interfaces seamlessly to both D-PHY℠ and C-PHY℠ based sensors over its MIPI CSI-2® IP Core and MIPI Displays are increasingly adopting C-PHY over our MIPI DSI-2℠ IP core.
This combo PHY provides a low-power and high-performance interface for platforms ranging from processors to peripheral devices for mobile, automotive, AI, and IoT applications. It inter-operates seamlessly with Arasan Chip Systems CSI-2® and DSI-2℠, and offers built-in test capabilities including PRBS generator and internal loopback to support cost-effective tests for high volume manufacturing.
This combo PHY may be configured as either a D-PHY℠ with one clock and up to four data lanes, or a C-PHY℠ with up to 3 trio lanes. Area overhead to support both modes is minimized by reusing the D-PHY℠ blocks and high-speed IO’s.

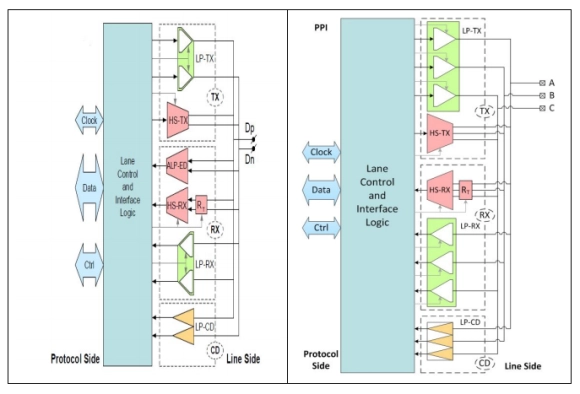

Diagrams
Key Features ● 4-lane D-PHY℠ 2.5 provides: o 18 Gbps when operating at 4.5 Gbps o 24 Gbps when operating at 6.0 Gbps ● 3-channel C-PHY℠ 2.0 provides: o 30.78 Gbps when operating at 4.5 Gsps o 41.04 Gbps when operating at 6.0 Gsps (provides 13.68 Gbps per trio per lane) ● Supports HS, LP, ALP, and CD modes ● Supports Fast lane Turnaround mode, low-power escape modes, and ultra-low-power state modes ● 80 Mbps to 1.5 Gbps per data lane in D-PHY℠ mode without deskew calibration ● Up to 2.5 Gbps per data lane in D-PHY℠ mode with deskew calibration ● Up to 4.5 Gbps per data lane in D-PHY℠ mode with equalization ● Up to 4.5Gsps (10.26 Gbps) per data trio-lane in C-PHY℠ mode available “off the shelf” for process nodes 28nm & 22nm. ● Full 6 Gbps for D-PHY optionally available on all process nodes 12nm and below. ● Full 6 Gsps for C-PHY optionally available on all process nodes 12nm and below. ● On-board programmable PLL with Spread Spectrum Clocking ● New power-saving HS-Tx half swing mode for D-PHY℠ ● Supports HS-IDLE mode for D-PHY℠ ● Supports HS Deskew, Alternate calibration sequence, a Preamble sequence ● Support HS Reverse ● Supports polarity swap for all lanes between DP/DN or A/B/C ● SPI register access to all registers ● Supports standard PPI interface compliant with MIPI Specifications ● Activates and disconnects high-speed termination for Rx and Tx modes ● “Support for Stuck-At scan” for DC scan feature. ● Total IP™ for MIPI Imaging & Display Interface from Arasan o Seamlessly integrated with Arasan’s CSI-2® and DSI-2℠ Digital Controller IP which support C-PHY v2.0 and D-PHY v2.5 features and the maximum throughput with low overhead loss. o Limited availability of Test Chips (on TSMC FINFET) and HDK from Arasan.
Deliverables ● GDS-II Database ● LVS Netlist ● Physical Abstract Models (LEF) ● Timing Models (LIB) ● Process Specific Integration Guide ● User Guide ● Customer support
