LPC Synthesizable Transactor

Overview

LPC Synthesizable Transactor provides an smart way to verify the LPC component of a SOC or a ASIC in Emulator or FPGA platform. The SmartDV's LPC Synthesizable Transactor is fully compliant with standard LPC Specification and provides the following features.

Key Features

  • Compliant to LPC 1.1 specifications.
  • Supports bandwidth up to 33 MHz.
  • Supports the following operations
    • Memory read and write
    • I/O read and write
    • DMA read and write
    • Bus Master memory read and write
    • Bus Master I/O read and write
    • Firmware memory read and write
  • Host is capable of generating all types of LPC transactions.
  • Peripheral is capable of responding to all types of LPC transactions.
  • Supports variable number of wait states
  • Supports Wakeup and Power state transactions.
  • Supports insertion of various types of errors.
  • Notifies the test bench of significant events such as transactions, warnings, and protocol violations
  • LPC Synthesizable Transactor comes with complete test suite to verify each and every feature of LPC specification
  • Status counters for various events in bus

Benefits

  • Compatible with testbench writing using SmartDV's VIP
  • All UVM sequences/testcases written with VIP can be reused
  • Runs in every major emulators environment
  • Runs in custom FPGA platforms

Block Diagram

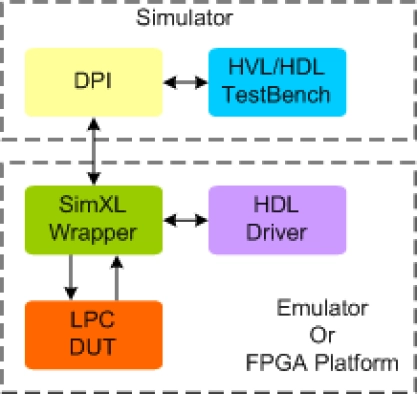

LPC Synthesizable Transactor Block Diagram

Deliverables

  • Synthesizable transactors
  • Complete regression suite containing all the LPC testcases
  • Examples showing how to connect various components, and usage of Synthesizable Transactor
  • Detailed documentation of all DPI, class, task and functions used in verification env
  • Documentation contains User's Guide and Release notes
