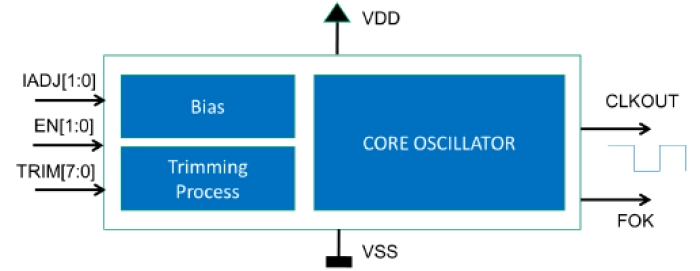

OSC-RC-32k-A01-D18-T22ULL.03_TSMC_22_uLL1.8 is a 32 kHz RC oscillator in TSMC 22ULL with 1.8 V I/O MOSFET devices based on a low-power architecture for the implementation of always-on domains. The IP informs the host when the frequency has reached a stable frequency value after leaving shutdown or standby mode.
| PARAMETERS | CONDITION |
Minimum value |
Typical value |
Maximum value |
|---|---|---|---|---|
|
Input Voltage |
- | 0.72 V | 0.99 V |
