The TRV801TSM180RF IP is a Ku-Band (14GHz to 14.5GHz) Transmitter (Tx) in TSMC 180nm RF CMOS process technology. It integrates X+Y transmitter channels on the same die and its low power makes it especially suitable for use in high-throughput modular digital Phased-Array Antenna products for mobile/tethered satellite communication applications.
Ku-Band Phased Array Tx-FE in TSMC 180nm RF
Overview
Key Features
- 14GHz to 14.5GHz RF Output Bandwidth
- Direct up-conversion and IQ Generator Circuitry
- Dual X + Y PA
- -10dB S11 (X or Y RF Outputs)
- 100mA Current Consumption
- -135dBm/Hz Rx-Band Output Noise Density
- 15dBm OIP3
- 5dBm Tx Saturated Output Power
- 36dB Linear and 31.5dB Log Attenuator Range

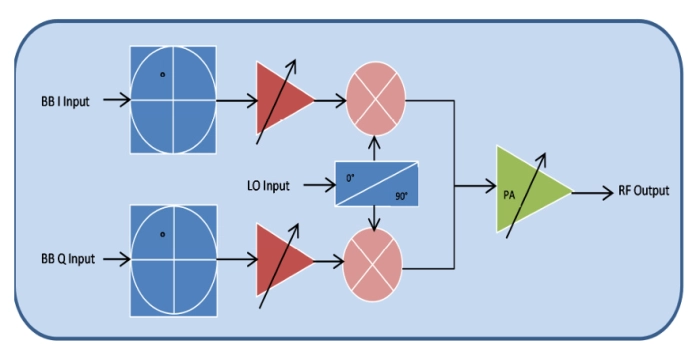

Block Diagram
Deliverables
- Behavioural Models
- Layout Abstract View
- Timing Models
- GDSII Layout Database
- Netlist for LVS verification
- Usage and Integration Guidelines
- Databook
Technical Specifications
Foundry, Node
TSMC 180nm RF
TSMC
Pre-Silicon:
180nm
