The TRV501TSM180RF IP is a Ku-Band (10.7GHz to 12.75GHz) Receiver (Rx) RFFE TSMC 180nm RF CMOS process technology. It integrates X+Y receiver channels on the same die and its low noise figure and wide baseband bandwidth makes it especially suitable for use in high-throughput modular digital Phased-Array Antenna products for mobile/tethered satellite communication applications.
Ku-Band Phased Array Rx-FE in TSMC 180nm RF
Overview
Key Features
- 10.7GHz to 12.75GHz RF Input Bandwidth
- Direct down-conversion and IQ Generator Circuitry
- Dual X + Y LNA
- -10dB S11
- 80mA Current Consumption
- 4dB Noise Figure
- -20dBm IIP3

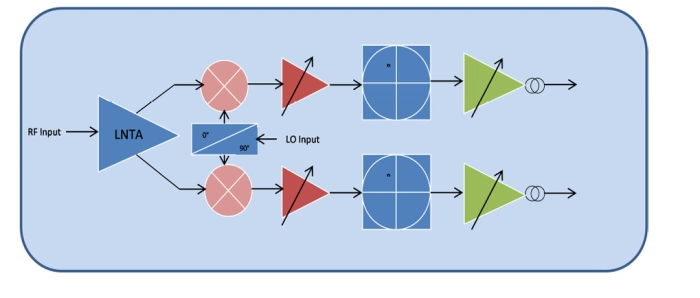

Block Diagram
Deliverables
- Behavioural Models
- Layout Abstract View
- Timing Models
- GDSII Layout Database
- Netlist for LVS verification
- Usage and Integration Guidelines
- Databook
Technical Specifications
Foundry, Node
TSMC 180nm RF
TSMC
Pre-Silicon:
180nm
