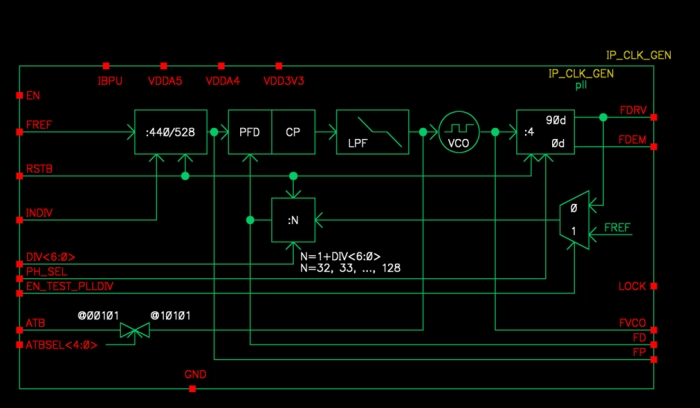

This integer-N PLL synthesizes 3.3V-square-wave FVCO frequencies within the HF range from 2.424MHz up to 9.697MHz, by steps of 18.9393kHz, and provides one fourth of fVCO on two other outputs, FDEM and FDRV, which feature quadrature phase difference or no phase shift depending on the control bit PH_SEL.
The PLL-locked state within ±0.08% of fVCO is signaled by a logic high level on the LOCK output.
The PLL operates with three supply voltages, VDDA5 (5V typical), VDDA4 (4V typical from the additional IP TS_VR_4V00_X8) for the analog and test-bus (ATB) circuits and VDD3V3 (3.3V typical from the additional IP TS_VR_3V30_X8) for the digital circuits.
The PLL is meant for on-chip internal operation. Its inputs or outputs that need access to bond pads will require the insertion of ESD-protected buffers. The ATB path complies with 2kV electrostatic discharges.
The minimum continuous operation lifetime spans 100000 hours.
Operating conditions
| Parameters | Values |
| Junction temperature range | 20ºC to +80ºC |
| Supply voltages | VDDA5: 4.9V to 5.1V VDDA4: 3.9V to 4.1V (supplied by the additional IP Reg_4V) VDD3V3: 3.2V to 3.4V (supplied by the additional IP Reg_3V3) |
| Reference sourced current intensity | I(IBPU): 19.5µA to 20.5µA (supplied by the additional IP Bias) |
| FREF-input reference frequency | 8.333MHz or 10.000MHz |
Specification
| Parameters | Values |
| FVCO-output frequency range | 2.424MHz to 9.697MHz |
| FVCO frequency step size | 18.9393kHz |
| FDRV-/FDEM-output frequency range | 606.06kHz to 2.424MHz |
| FVCO period jitter @2.424MHz | 271psRMS max |
| PLL lock time upon power on | 4.95ms max |
| LOCK response time to PLL-locked state | 150ms max |
| Operating power consumption Enable EN high, active-low reset RSTB high | 870µW max |
| Powerdown-mode current consumption Enable EN low | 187nA max |
| Area | 0.16mm² |
