Frac-N PLL on Samsung 4nm LN04LPP

Overview

PLLF0434X is a 1.2V/0.75V dual supply-voltage phase locked loop (PLL) with a wide-output-frequency-range for frequency synthesis.

It consists of a phase frequency detector (PFD), a charge pump, a voltage-controlled oscillator (VCO), a 6-bit pre-divider, a 10-bit main-divider, a 3-bit scaler, a delta-sigma modulator (DSM) and an automatic frequency control (AFC).

The maximum output frequency of PLL is 4.5GHz.

Key Features

  • Dual power supply of 1.2V±10% and 0.85V+5% ~ 0.75V-10%
  • Operating junction temperature(TJ): -40°C ~ 125°C
  • Output frequency range: 35.156MHz ~ 4.5GHz
  • Duty ratio: 45 ~ 55%
  • Power down mode
  • Bypass mode (FOUT = FIN)
  • Programmable dividers
  • Glitch-free scaler
  • On-chip loop filter
  • Lock Detector

Benefits

  • Glitch-free scaler
  • Low Jitter
  • Low Power

Block Diagram

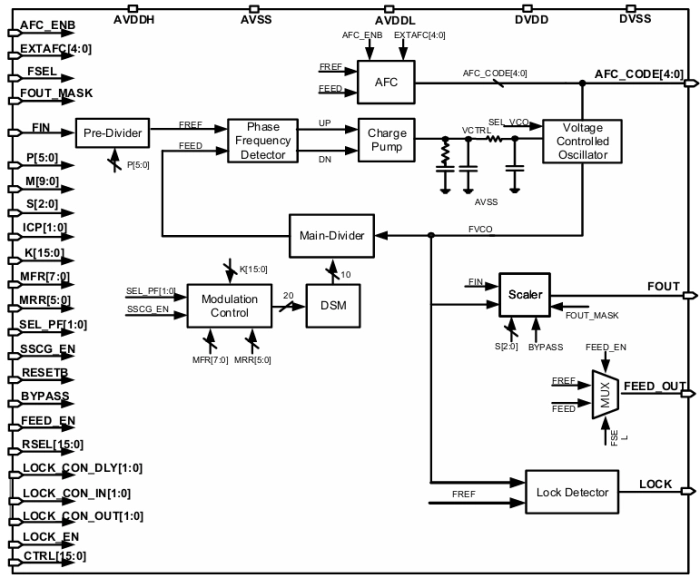

Frac-N PLL on Samsung 4nm LN04LPP Block Diagram

Applications

  • Mobile/Consumer

Deliverables

  • FE(Front-End) : IPXACT, LEF, LIBERTY, MODEL, TB FUNCTION, TB VECTOR GEN, TWRAP

Technical Specifications

Short description
Frac-N PLL on Samsung 4nm LN04LPP
Vendor
Vendor Name
Foundry, Node
SF 4nm, LN04LPP
Samsung
Pre-Silicon: 4nm
×
