DVB-S2 modulator
Overview

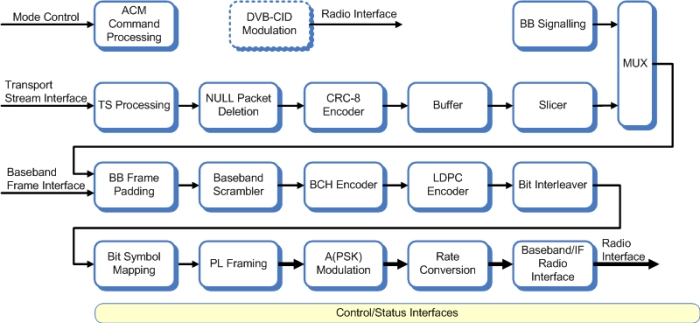

The CMS0025 "SkyPlug" DVB-S2 (A)PSK modulator is an integrated modulator and channel-coder core designed specifically to address the requirements of the ETSI DVB-S2 forward-link satellite Standard (EN302307). It can operate in CCM and VCM/ACM modes and is fully compliant with the standard.
Key Features
- Support for CCM, VCM and ACM modes.
- Variable sample-rate interpolation provides ultra flexible clocking strategy.
- Compatible with Broadcast, DSNG, Interactive and Professional DVB-S2 profiles.
- QPSK, 8PSK, 16APSK, 32APSK support.
- Short (16kb) and normal (64kb) frames
- Frames with/without intra-frame pilots.
- Automatic dummy-frame insertion.
- Integrated LDPC Channel Coder
- (TurboConcept TC4000).
- Optional internal IF conversion.
Deliverables
- Optimised for ASIC, Xilinx and Altera.
- Evaluation boards available.
