Display Stream Compression (DSC 1.2) Decoder
Overview
The Trilinear Technologies Display Stream Compression (DSC) Decoder core offers realtime decompression of high-definition streams with resolutions from 480 to 8K. The core supports 8, 10, 12, 14 or 16 bits per pixel using either RGB or YCbCr in 4:4:4 or 4:2:2 format. The DSC Decoder core integrates industry standard interfaces for host configuration and control, data input, and video output.

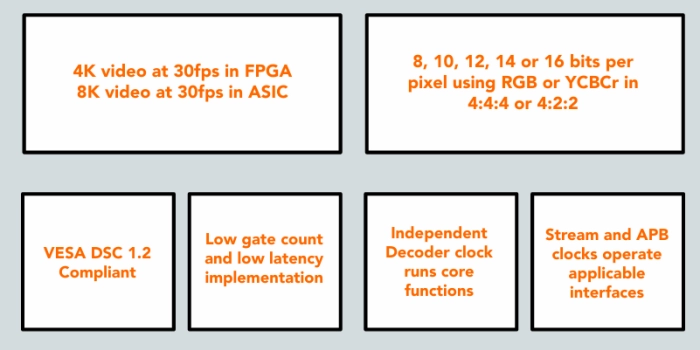

Key Features
- Capable of decoding up to 4K video at 30fps in FPGA and 8K video at 30fps in ASIC applications
- Low gate count and low latency implementation
- Three clock domains:
- Stream and APB clocks operate the applicable interfaces
- Independent decoder clock runs the core functions
- Fully compliant with the VESA DSC 1.2 standard
- Uses synchronous design techniques and a technology abstraction layer for internal SRAM buffers
- Allows for migration from FPGA or FPGA prototype to ASIC with no functional changes to the core.
- Completely pipelined; can be stalled as necessary to properly manage input and output rates
Block Diagram
Technical Specifications
