The crystal oscillator macros are available in a wide range of industry-standard quartz crystals and MEMS resonators operating in the fundamental mode in the 32 kHz to 80 MHz range. These oscillators, which are both power and area efficient, have a programmable transconductance to allow users to find the optimal balance between jitter and power consumption. The macro is designed to be used with standard foundry ESD cells and has the ability to bypass the oscillator to allow feeding an external clock through the XIN pin.
Crystal Oscillators
Overview
Key Features
- Cover a wide frequency range 32kHz - 80 MHz
- Support fundamental mode quartz crystals and MEMS resonators
- Programmable transconductance to match resonator parameters for best performance
- Low jitter CMOS output clock

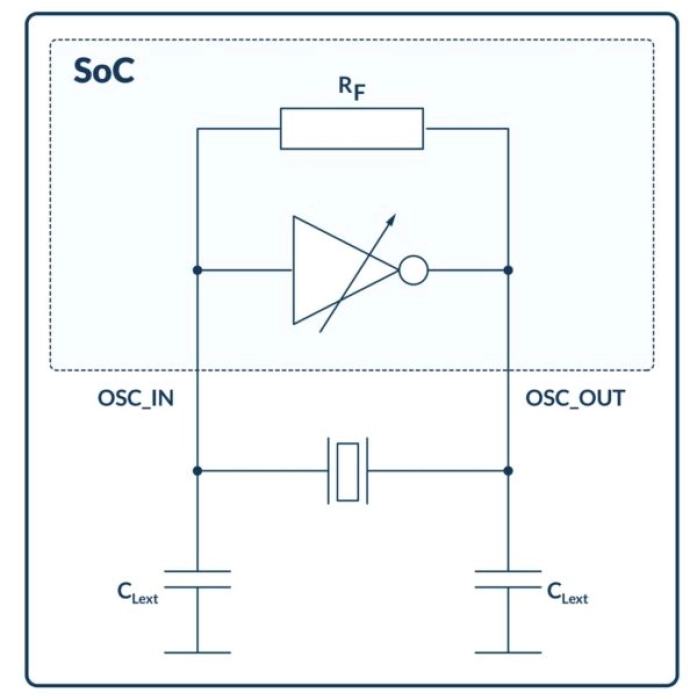

Block Diagram
Technical Specifications
GLOBALFOUNDRIES
In Production:
28nm
SLP
SMIC
Silicon Proven:
40nm
LL
TSMC
In Production:
5nm
,
7nm
,
10nm
,
12nm
,
16nm
,
28nm
HPC
,
28nm
HPCP
,
40nm
LP
Pre-Silicon: 28nm HPM , 40nm LP
Silicon Proven: 3nm , 6nm
Pre-Silicon: 28nm HPM , 40nm LP
Silicon Proven: 3nm , 6nm
UMC
In Production:
40nm
LP
