75mA Core Voltage Regulator

Overview

The OT1104 is a CMOS 75mA on-chip core voltage regulator designed for use when a pin for an external decoupling capacitor is not available.

A source follower output stage provides a low impedance at the output at high frequencies, minimizing on chip decoupling requirements for core logic.

Key Features

  • Input voltage range 3.0V – 3.3V.
  • Output voltage 1.2V or 1.8V ±4%.
  • Output short circuit protection.
  • Bundled with Obsidian 1.2V bandgap reference.
  • Power down/enable input.
  • Fast response to current steps.
  • 2% DC line and load regulation.
  • PSRR 45dB @ 1MHz.
  • -40°C to 120°C temperature operation.
  • Base cell area 0.02mm2 in 0.18µ CMOS.

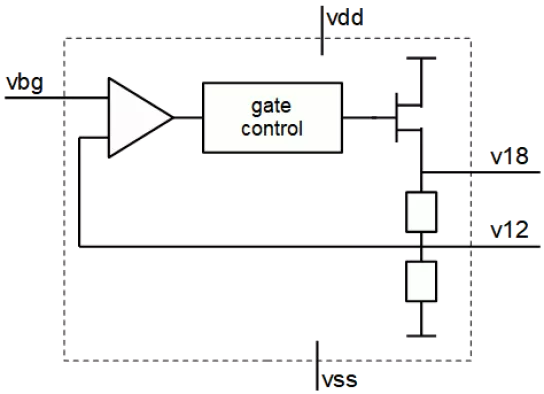

Block Diagram

75mA Core Voltage Regulator Block Diagram

Technical Specifications

Short description
75mA Core Voltage Regulator
Vendor
Vendor Name
Maturity
Silicon
Availability
Now
SMIC
Silicon Proven: 180nm G
TSMC
In Production: 180nm G , 180nm LP
Pre-Silicon: 150nm G
Silicon Proven: 180nm G , 180nm LP
×
