CT22403 is a 14-bit 10 Ms/s Analog to Digital converter.
It is implemented with SAR architecture and offline calibration.
With 15mA total current consumption the Figure of merit of the ADC is 300 fJ/step, that is at the state of the art for its frequency sampling range.
The calibration time at maximum clockfrequency is less than 20 us.
14b-10MSps Cal-SAR ADC
Overview
Key Features
- Single Ended Input
- Max sample rate: 10 Msps
- INL = ±2 LSB
- DNL = ±1 LSB (no missing codes)
- Internal Buffers for Reference Voltages
- 15mA supply current

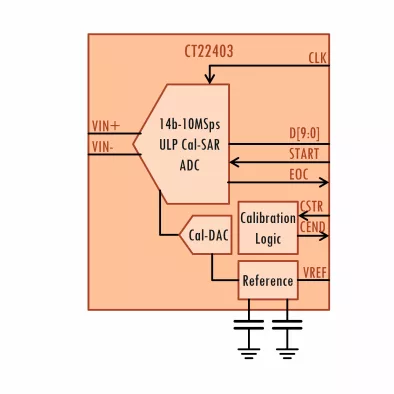

Block Diagram
Applications
- Industrial process control
- Sensor measurement
- Power supply monitoring
Technical Specifications
Short description
14b-10MSps Cal-SAR ADC
Vendor
Vendor Name
Maturity
Foundry TBD
Availability
Architecture Ready
