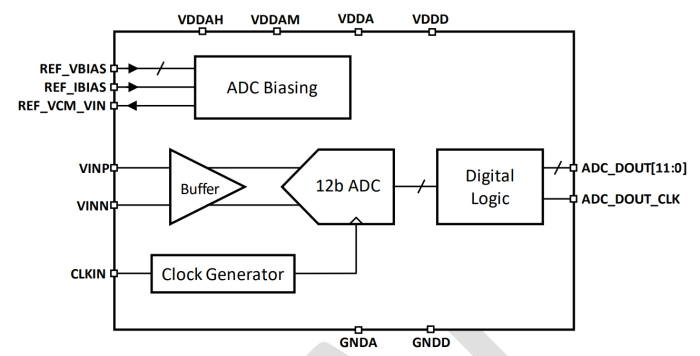

12 bit, 500 MSPS ADC on GF 22FDX

Overview

The ODT-ADS-12B500M-G22FDX is an ultra-low power ADC designed in a 22nm CMOS process.

This 12-bit, 500MSPS ADC supports input signals upo 100MHz and features a differential full-scale range of 0.8Vpp and excellent static and dynamic performance.

Key Features

Ultra high-performance low-power ADC
Integrated input buffer
12-bit ADC resolution
Sampling rate of 500MSPS
Fully differential operation
0.8Vpp differential input signal range
Functional from -40?C to 150?C
AEC-Q100 Grade-2
In-band SFDR of 75dBc
SNR of 58.5dB in full Nyquist
SNDR of 57dB

Benefits

High Performance Low Power, Low Area

Applications

General-purpose software-defined radio
Data acquisition systems
Cellular base station
Broadband communications
High-speed medical imaging
Wideband satellite receiver

Deliverables

Datasheet
Hard Macro (GDSII)
Characterization Report (as applicable)
Abstract View (LEF) for top level connectivity
Integration and Customer Support

Technical Specifications

Foundry, Node

GF, 22nm

Maturity

Contact Omni Design Technology

Availability

Now

GLOBALFOUNDRIES

Pre-Silicon: 22nm FDX

Request Info
