Smallest size 1G Ethernet switch IP in the industry targeted for Automotive, Avionics, and Industrial applications

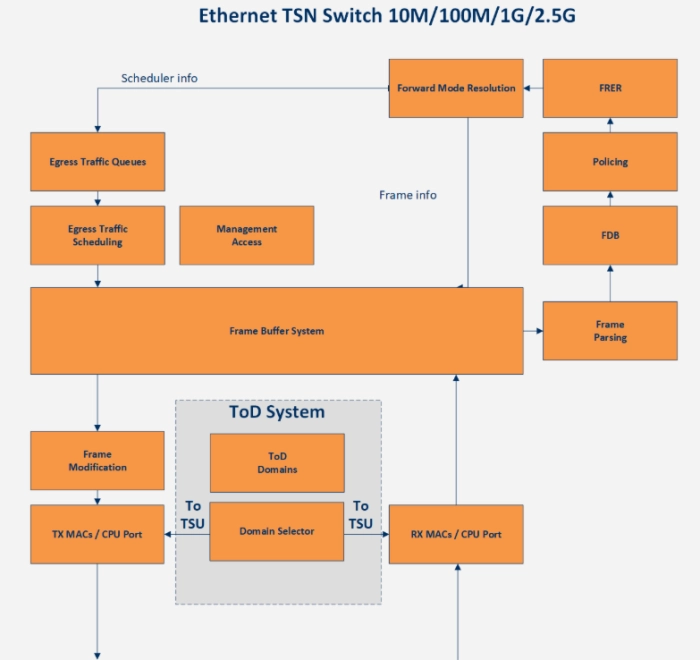

The 10M/100M/1G/2.5G compact Ethernet TSN Switch IP core is an advanced managed switch targeting automotive, avionics, and industrial applications. It is providing cut-through and supporting the TSN family of standards. It is compliant to several TSN profiles as defined by IEEE while offering the ultimately lowest gate count on the market.
The non-blocking 10M/100M/1G/2.5G compact managed Ethernet TSN switch IP from Comcores enables fine-grained traffic differentiation for rich implementations of packet prioritization enabling per port and per queue shaping on egress ports. The switch supports MAC learning, VLAN 802.1Q, multicast and broadcast as well as support for timing synchronization according to 802.1AS. Each port provides a native interface for GMII Ethernet PHY devices.
