Verification IP for USB

Overview

Accelerated confidence in simulation-based verification of RTL designs with USB interfaces: UCM2, USB3.1, USB3.2, USB-C, Other USB-C Protocols

Avery VIP for USB is a comprehensive solution for verification of USB-based designs ranging from the USB 2.0, 3.x, and 4.0 standards, including xHCI host controllers and USB mass storage class standards for UAS and BOT. USB VIP allows users to verify their designs by developing custom tests at several levels of abstraction.

Core through chip-level verification

The USB application designer can easily link the device under test (DUT) into the test environment, including DUT integration of the user-side logic to a USB protocol layer model. This enables full control over the DUT to initiate transac tions via HCDI operations. Device and PHY-only core verification is supported.

Compliance test suite

The test environment includes a suite of functional compliance tests for a simple USB device, UAS/BOT device, and xHCI host. Random and directed test cases are supported. Random testing supports generating random USB transfer types and PROTOCOL/LINK/PHY layer behaviors, including error injection.

Specifications

Protocol Family

Standard Organization

Sub Protocol

Models

USB4/3

USB-IF



USB 4.0



USB-IF



USB4 Logical CTS 1.1



USB-IF



USB4 Protocol CTS 1.1



USB-IF



USB 3.2 CTS

xHCI

USB-IF



xHCI 1.2

PD

USB-IF



PD V3.0 R2.0



USB-IF



PD V3.0 V1p14 r2

UAS/BOT

USB-IF



UAS 1.0



USB-IF



UASP CTS 0.9



USB-IF



BOT 1.0



T10



SBC4r12



T10



SPC5r12



T10



SAT3r04



T10



SAM6r02

USB2

USB-IF



USB 2.0



USB-IF



ULPI 1.2



USB-IF



UTMI+ 1.0

Key Features

  • Complete solution for USB 2.0, OTG, Superspeed 4.0, Power Delivery (PD 3.0), and xHCI
  • Runs over USB Type-C® interconnects
  • Tunnels USB3, PCIe, and DP protocols
  • Supports UAS/BOT core through SoC verification
  • Host, device, and hub models
  • PIPE/PHY models for USB3/USB2/PD with Type-C interface or SSIC/M-PHY
  • Supports xHCI host controller IP development using xHCD host driver agent
  • Compliance test suite for protocol, link, and physical layer verification of host, device, hub, and PHY
  • Comprehensive assertions track USB compliance coverage
  • Functional coverage tracks range of packet traffic, FSMs, and complex operational sequences
  • Packet and symbol tracker monitor output to improve debug

Major features

  • Host performs bus enumeration and allo cates USB pipes for communication between host and each endpoint
  • Program TP sequences for bulk, isochronous, interrupt, bulk stream, and control transfer types
  • Program USB device requests to access USB device descriptors
  • Automatic frame scheduling and bus inter val and service interval support, including ITP generation
  • Program host and device model timing parameters and response behaviors, such as link commands
  • Fine-grained control over LTSSM transition sequences
  • Fine-grained link layer controls
  • Inject errors at all layers through callbacks
  • Control device operation state transitions, including suspend/resume
  • Full power management support (U0-U3), including automatic and software directed entry/exit
  • Power on and inband reset
  • xHC driver emulates hardware/software interface between system software and the host controller hardware
  • xHC driver model implements all host side memory data structures and register-level host controller interfaces for USB 2.0/4.0, including complex randomized ring memory allocation
  • xHC compliance test suite is also supported.
  • The xHC driver VIP interfaces with xHC host controllers via PCIe and AMBA
  • Mass storage class host implements the USB attached SCSI protocol (UASP) and bulk-only transport (BOT) protocols and supports the SCSI and task management commands found under SPC, SBC, RBC, and SAM
  • Mass storage class test suite performs SCSI command compliance, performance, and power state verification, and provides cover age monitoring of the USB throughput and SCSI command completion status

Benefits

  • Verifies USB-based designs
  • Allows customized tests at several levels of abstraction
  • Enables full control over the DUT to initiate transactions via HCDI operations
  • Supports device and PHY-only core verification
  • Supports random and directed test cases

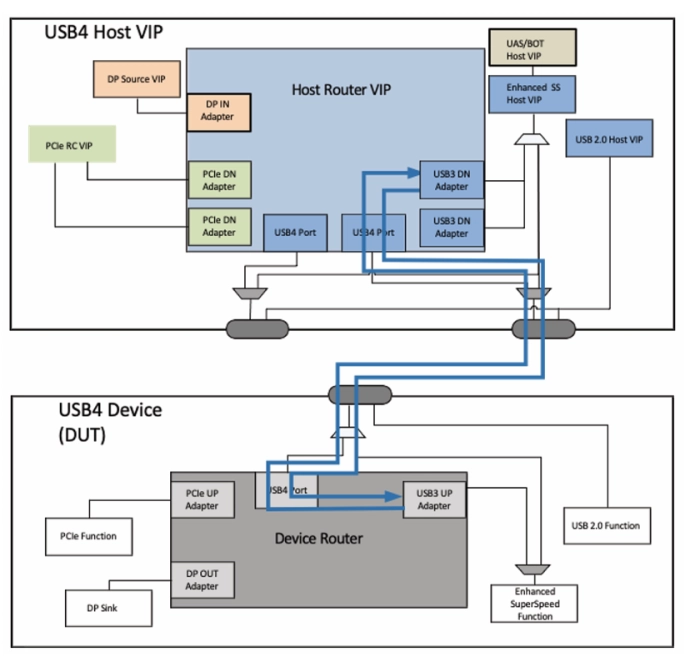

Block Diagram

Verification IP for USB Block Diagram
