PCI Bus Arbiter

Key Features

• Compliant with PCI bus specification 2.1 to 3.0
• Designed for ASIC and PLD implementations in various system environments.
• Supports two to eight bus masters.
• Run time selection between rotating priority or fix priority scheme.
• Bus parking.
• Single cycle request-to-grant turn around time.
• Quiet cycle during master switch.
• Master time-out.

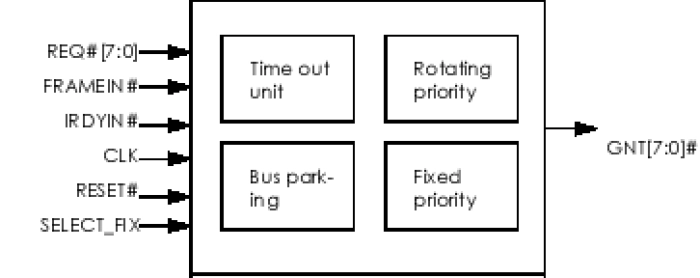

Block Diagram

Technical Specifications
