PowerPC Bus Arbiter

Key Features

  • Fully supports PowerPC 60x bus protocol, include PowerPC 603, 604, 740, 750 and 8260.
  • Designed for ASIC or PLD implementations in various system environments.
  • Fully static design with edge triggered flip-flops.
  • Supports up to eight PowerPC bus masters with unlimited slave device support.
  • Supports two outstanding bus accesses.
  • Supports address only transfer and address bus retry.
  • Independent address bus and data bus tenure with separate bus grant and data bus grant.
  • Option for fixed priority assignment or rotating priority scheme

Block Diagram

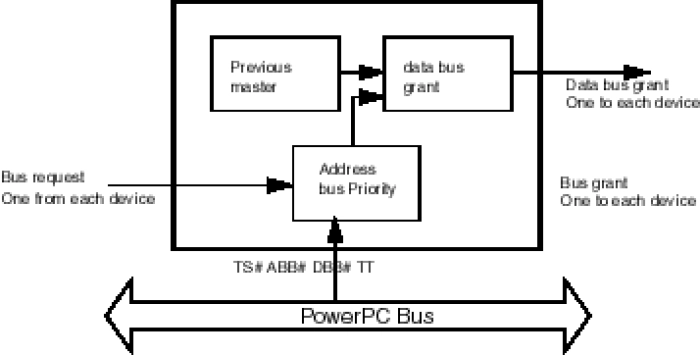

PowerPC Bus Arbiter Block Diagram

Technical Specifications

Short description
PowerPC Bus Arbiter
Vendor
Vendor Name
Foundry, Node
ASIC and FPGA
Availability
Now
UMC
Pre-Silicon: 500nm
×
