32-bit PCI Bus Master/Target

32-bit PCI Bus Master/Target

Key features

  • Compliant with PCI specification 2.2/2.3/3.0 protocol.
  • Designed for ASIC and FPGA implementations in various system environments.
  • Combines bus master and bus target functions in one core.
  • Supports burst transfer to maximize memory bandwidth.
  • Zero wait state PCI data transfer. Up to 133Mbyte/sec at 33Mhz and 266Mbyte/sec at 66Mhz.
  • Supports target retry, disconnect and target abort.
  • Automatic transfer restart on target retry and disconnect.
  • Concurrent bus master and target function.
  • Write buffer for target write data posting to increase PCI bus performance.
  • Responds to standard PCI configuration access.
  • Supports all PCI specific configuration registers.
  • User controlled base address register sizing and mapping.
  • Retry counter to limit bus access to non-responsive target device.
  • PCI status directly available to user logic for interrupt generation.
  • Differentiating Features
    • Asynchronous user interface
    • Power management.
    • DMA controller.
    • Direct interface to AMBA AHB, Mips or Power PC.
    • Dual address cycle.
    • Hot swap for compact PCI.
    • Host bridge function.

Block Diagram

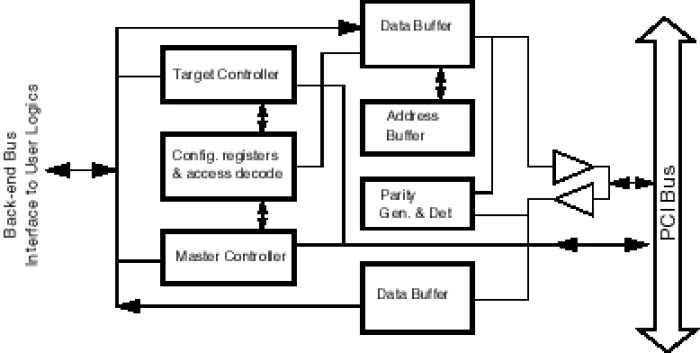

EC220 block diagram

Specifications

Identity

Part Number
EC220
Vendor
Eureka Technology, Inc.
Type
Silicon IP

Files

Product Sheet Download
