I3C V1.1 Advanced Target

Overview

The I3C Advanced Target is a highly configurable I3C Target that
can be used in microcontroller based environments to provide
I3C connectivity to any device. It can be configured in a number
of different ways to allow the core to use the minimum amount
of logic to reduce both area (cost) and power.

Key Features

Advanced I3C features
HDR-BT with up to 100 Mbps bandwidth
Multilane with 1, 2, or 4 SDA lanes
Hot join
In-band interrupts
Timing Control
Asynchronous Mode 0
Synchronous Mode
High-speed mode (HDR-DDR)
Group addressing
Target reset
All Common Command Codes (CCCs) supported
AMBA APB (v3) application interface
Memory mapped registers
DMA, flow control features
FIFO options
Internal 2-byte ping-pong buffer
Internal FIFO (or 32 words for HDR-BT mode)
Static I2C address support
Legacy I2C coexistence, including I2C messaging
Support for I2C pads with 50ns glitch filter

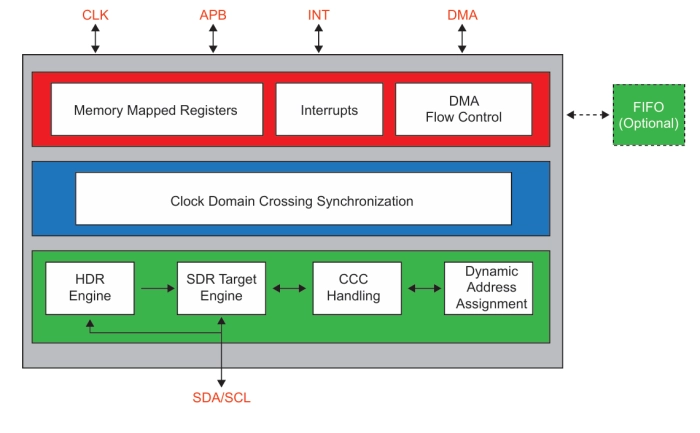

Block Diagram

Applications

IoT Edge Devices
Industrial Sensors
Small Controllers
Mixed Signal Digital - MEMS
Smart Sensors
Smart Lighting
Temperature, Pressure, Acceleration Monitors
Personal Health Monitors
I3C Connected Devices

Deliverables

Verilog RTL source code
Test bench with test suites
Documentation including User's Guide and Integration Guide
Technology-independent synthesis constraints

Technical Specifications

Maturity

Silicon Proven

Availability

Now
