SLVS-EC Receiver IP

Overview

Next generation CMOS image sensor interface

SLVS-EC is the next-generation, high-speed interface for high-resolution CMOS image sensors.

This standard is tolerant of lane-to-lane skew because of embedded clock technology that simplifies board-level design of high-speed and long-distance data transmission.

Originally developed and licensed by Sony, SLVS-EC is now starting to be supported by multiple image sensor suppliers.

Specifications

Feature Description
Number of Lanes 1, 2, 4, 6, 8
Baud Grade

1 (1.152 to 1.25 Gbps)

2 (2.304 to 2.5 Gbps)

3 (4.608 to 5.0 Gbps - supported in v2.0)

Bit per Pixel 8, 10, 12, 14, 16
CRC Limited*
ECC Supported
Embedded Data Supported
Dynamic Mode Change Supported
Multiple Stream If needed

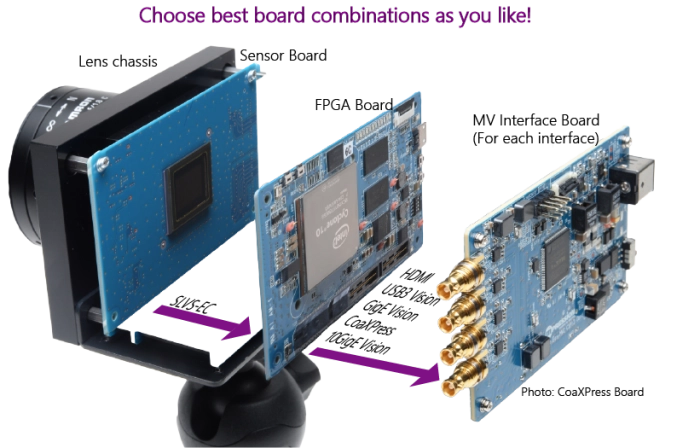

Supported Devices

  • Intel Cyclone V GX/SX (v1.2)
  • Intel Cyclone 10 GX (v1.2 / 2.0)
  • Intel Arria 10 GX/SX (v1.2 / 2.0)
  • Xilinx Artix 7 (v1.2)
  • Xilinx Kintex 7 (v1.2 / 2.0)
  • Xilinx Kintex Ultrascale (v1.2 /2.0)
  • Xilinx Kintex Ultrascale (v1.2 / 2.0)

evice Resource Utilization

Resource Utilization in case of 8 LANE Full Configuration

Items Cyclone® V GX Arria® 10 GX
  w/o ECC w/ECC w/o ECC w/ECC
ALMs 4711 8242 3930 7555
Total Registers 4328 6664 3778 6079
Total block memory bits 4096 13312 2560 11776

Key Features

  • Compliant with SLVS-EC Specification v1.2 and v2.0 by Sony
  • Supports various functions defined by the SLVS-EC Link layer (FPGA dPCS/PMA is used as Physical layer)
  • Supports Byte-to-Pixel conversion for various lane-configurations
  • Supports Header analysis and Payload error detection

Block Diagram

SLVS-EC Receiver IP Block Diagram

Deliverables

  • Encrypted RTL (Verilog HDL)
  • Reference design
  • Simulation environment (For ModelSim)
  • User's manual, Reference manual

Technical Specifications

Short description
SLVS-EC Receiver IP
Vendor
Vendor Name
×
Semiconductor IP
