QSGMII/SGMII/ 1000BASE-X PCS and MAC

Overview

OmegaCORE QSGMII/SGMII/1000BASE-X PCS and MAC is the fully integrated 5G QSGMII, 2.5G/1.25G SGMII and 1000BASE-X Physical Coding Sublayer (PCS-X) and Media Access Controller (MAC) core for Ethernet applications which is complaint with IEEE 802.3 standard and QSGMII and SGMII specifications. The interface to the PMA supports a single channel Tri mode bi-directional, serial interface. The PCS sublayer supports 8B10B encoding (QSGMII/SGMII/1000BASE-X). This TriMode Core is configurable through software register.

The west-bound interface from the MAC provides a configurable 32-bit system interface.

The east-bound interface performs the mapping of transmit and receive data streams (at the PMA layer) to the on-chip SERDES.

Key Features

  • Integrated MAC and PCS for area efficiency
  • Fully compatible with IEEE802.3 2015, QSGMII specification 1.2, and SGMII specification 1.6 Standard
  • Super low latency with minimized fixed and variable delay for network efficiency.
  • Supports 1588v2 1-step and 2-step time stamps and full error handling
  • Supports 802.1Qbb priority flow control (PFC)

Benefits

  • Proven IP reduces development time and risk
  • Support 5Gbps, 2.5Gbps and 1.25Gbps SerDes interfaces
  • Support QSGMII, SGMII and 1000BASE-X 8B10B PCS encoding
  • Support 4 or 1 channel operations
  • Off-the-shelf, proven technology implementation in FPGAs and ASIC SOC
  • Tested and interoperability-proven

Block Diagram

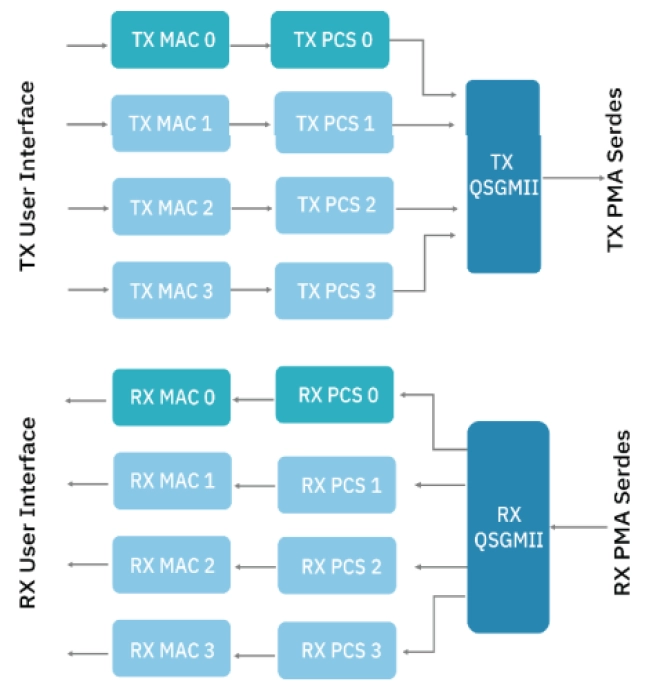

QSGMII/SGMII/ 1000BASE-X PCS and MAC Block Diagram

Applications

  • High performance server network interface cards
  • Mid-sized routers

Technical Specifications

Short description
QSGMII/SGMII/ 1000BASE-X PCS and MAC
Vendor
Vendor Name
×
Semiconductor IP
