H.265 Decoder

Overview

The H.265 (HEVC – High Efficiency Video Coding) Decoder IP core delivers high-performance video decompression for next-generation visual applications, including broadcast, surveillance, automotive, and consumer electronics. It supports real-time decoding of ultra-high-definition (UHD) video streams, up to 4K and 8K resolutions, while significantly reducing bandwidth and storage requirements without compromising video quality.

The IP core supports Main, Main 10, and Main Still Picture profiles, ensuring broad compatibility with industry, standard H.265/HEVC content. Advanced features such as error concealment, low-latency processing, and support for various chroma formats (4:2:0, 4:2:2, 4:4:4) make it ideal for demanding multimedia applications.

Designed for flexibility, the IP core is highly configurable to meet specific design requirements, supporting both ASIC and FPGA implementations while optimizing for area, power, and performance.

Key Features

High-Efficiency Video Decoding – Supports full ITU-T H.265 | ISO/IEC 23008-2 HEVC decoding, enabling up to 50% bitrate savings compared to H.264
Ultra-High Resolution Playback – Capable of decoding resolutions up to 16384×8640 at 120 fps for 4K, 8K, and UHD applications
Flexible Profile and Bit Depth Support – Decodes Main, Main10, and Main Still Picture profiles with 8-bit to 16-bit depth support for wide color range fidelity
Robust Prediction and Transform Handling – Supports intra and inter prediction, CABAC decoding, SAO, deblocking filters, and transform skip modes
Chroma and Format Flexibility – Handles 4:4:4, 4:2:2, 4:2:0 chroma formats, and monochrome (4:0:0) decoding
Optimized for Real-Time Applications – Low-latency, high-throughput architecture suitable for broadcast, surveillance, automotive, and mobile systems

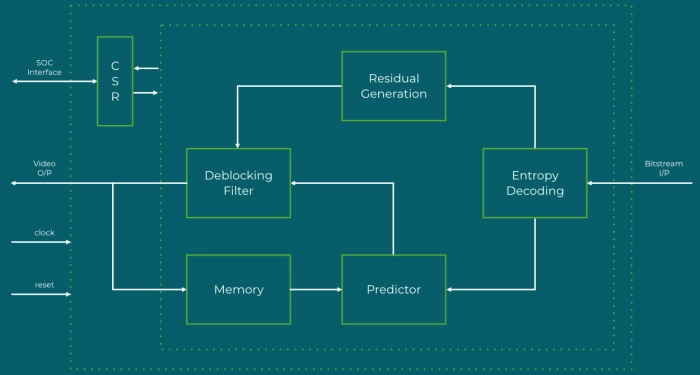

Block Diagram

Technical Specifications
