VMAF Video Quality Metric Accelerator IP

Overview

“Pulsar-VQM” is a fixed functional hardware accelerator IP

Video encoding and delivery optimizations play a critical role in modern video streaming service market. Optimizations such as content-aware encoding and multi-codec usage strategies increase the service’s QoE and reduce the cost of storing and delivering video so that the streaming services stay competitive in the market.

You can optimize encoding by measuring the visual quality of the transcoded output, such as selecting the bitrate-resolution combination with the highest VMAF score, ensuring efficient data usage without waste.

VMAF quality metric, which mimics the human visual system, has been widely used to measure quality. But, VMAF is based on ML(Machine Learning) and has a very high computational complexity, making it computing resource intensive and slow.

Pulsar-VQM is a fixed-function hardware accelerator IP designed to deliver the highest computing efficiency for measuring the VMAF Video Quality Metric. Compared to software-based VMAF on a CPU, Pulsar-VQM offers superior performance and faster results. Additionally, it efficiently accelerates the calculation of video metrics such as PSNR, SSIM, and VMAF-NEG within a single IP.

IP Specification

  • AXI compliant
    • One AXI4 Lite port with 32-bit address and 32-bit data for the host to communicate with the IP
    • Seven AXI master ports with 64-bit address  & 512-bit data to access the external memory
  • Input video format/bit-depth
    • No limitation of the chroma sampling format  and bit-depth of input video
    • IP block reads only luminance, assuming 8-bit per sample
  • Fusion of the statistics in software
    • Hardware IP computes MCPD, APM, and VIF, but software on Host CPU does VMAF score
    • VMAF metric is flexibly updated with user’s statics
  • HLS (High-Level Synthesis) Design
    • HLS design flow is used for IP development
    • RTL optimized for a specific target technology and platform can be generated with ease of timing closure
  • Target Platform
    • ASIC
    • FPGA cards for on-premise
    • FPGA instances for AWS and MS Azure

Key Features

Fully hardwired IP

  • Offering high throughput
  • No CPU workload required
  • AMBA AXI4 compatible

High performance

  • 4K 240fps @1GHz with a single instance
  • Subdivided into 4ch x 4K 60fps

4 VIDeo Quality Metrics in single ip

  • VMAF
  • VMAF-NEG
  • PSNR
  • SSIM

Built-in Video Scaler

  • Hardwire IP block
  • Computation offloading from CPU

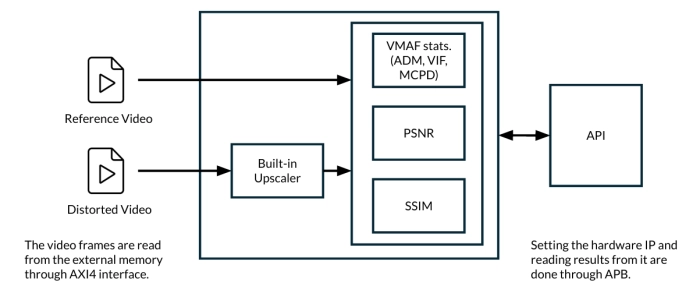

Block Diagram

VMAF Video Quality Metric Accelerator IP Block Diagram

Video

Pulsar-VMAF Hardware Accelerator IP for VMAF measuring

IP evaluation is available at https://github.com/bluedot-io/Pulsar-VMAF

Applications

  • Video Streaming
  • Transcoding

Technical Specifications

Short description
VMAF Video Quality Metric Accelerator IP
Vendor
Vendor Name
Availability
Now
×
