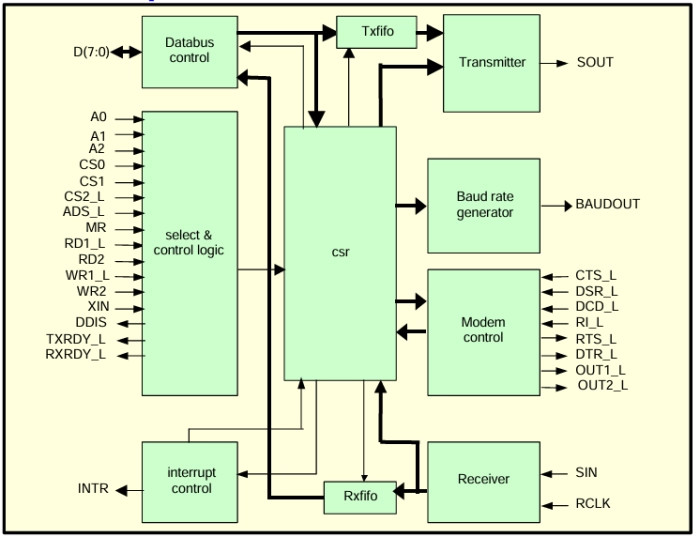

The SI40U550 IP core is a Universal Asynchronous Receiver Transmitter fully compatible with the de - facto standard 16550 UART. The SI40U550 core performs serial - to - parallel conversions on data received from a peripheral device or modem and parallel - to - serial conversion on data received from the host. The host can read the UART status at any time. The SI40U550 core includes complete modem control capability and a processor interrupt system that can be tailored to minimize software management of the communications link.
The core provides a full - featured transmitter - receiver pair, configurable by software for different speeds, character widths, parity etc. The receiver provides information status with several error indications.
The core can be placed in an alternate FIFO mode. This relieves the CPU of excessive software overhead by buffering received and transmitted characters. The receiver and transmitter FIFOs store up to 16 bytes including three additional bits of error status per byte for the receiver FIFO. In the FIFO mode, there is a selectable auto flow control feature that can significantly reduce software overload and increase system efficiency by automatically controlling serial data flow using RTS output and CTS input signals.
The SI40U550 core includes a programmable baud rate generator capable of dividing a reference clock by divisors from 1 to 65535 and producing a 16x reference clock for the internal transmitter logic. Provisions are included to use this 16x clock for the receiver logic.
DMA operation is allowed with two output signals that inform the DMA controller about when is new received data available and when the UART is able to accept new data for transmission.
Management of modem control outputs and inputs (with their associated interrupt) is included.
