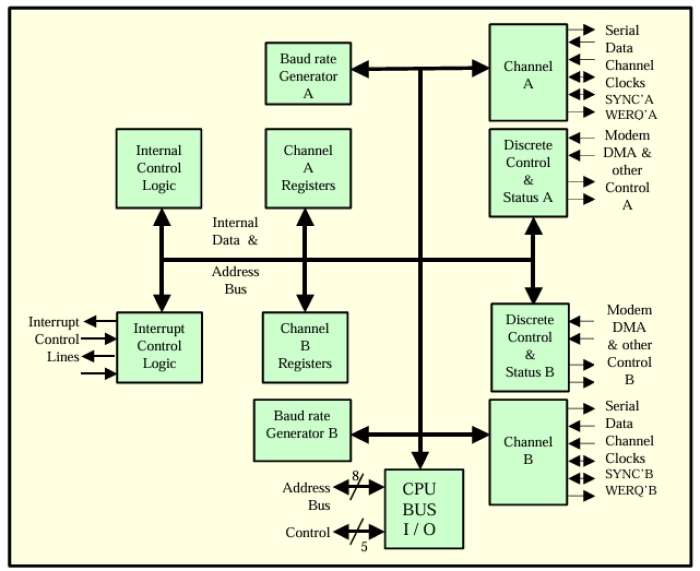

The SI85SCC30 SCC is a dual channel, multiprotocol data communications peripheral. It supports virtually any serial data transfer application with important functions like baud rate generator, digital phase locked loop on the cell, it makes a self contained controller. In proportion to its functionalities the pin count is very less
Synchronous / Isosynchronous data rates :
- Upto 1 / 4 of the PCLK (2.5 Mbits / sec) maximum data rate with 10 MHz PCLK using external phase locked loop.
- Upto 625 Kbit / sec with a 10 MHz clock rate. Upto 500 Kbit / sec with a 8MHz clock rate (FM encoding using DPLL).
- Upto 372.5 Kbit / sec with a 10 MHz clock rate. Upto 250 Kbit / sec with a 8 MHz clock rate (NRZI encoding using DPLL).
Asynchronous capabilities :
- 5, 6, 7 or 8 bits per character.
- 1, 1 - 1 / 2 or 2 stop bits.
- Odd or Even parity.
- Times 1, 16, 32 or 64 clock modes.
- Spike rejection mechanism, break generation and detection and also parity overrun and framing error detection.
Synchronous capabilities :
- Internal or external synchronization.
- 5, 6, 7 or 8 bits per character with 1 or 2 sync characters in separate registers.
- Automatic CRC generation (CRC - 16 / SDLC - CRC) generation / detection
SDLC / HDLC Capabilities :
- 5, 6, 7 or 8 bits per character.
- Abort sequence generation and checking.
- Automatic zero insertion/deletion and detection.
- Automatic flag insertion between messages.
- Address field recognition.
- SDLC Loop - mode with EOP recognition / loop entry and exit.
- CRC - 16 / SDLC - CRC generation/detection.
