SD 3.0/eMMC 4.41 Host Controller

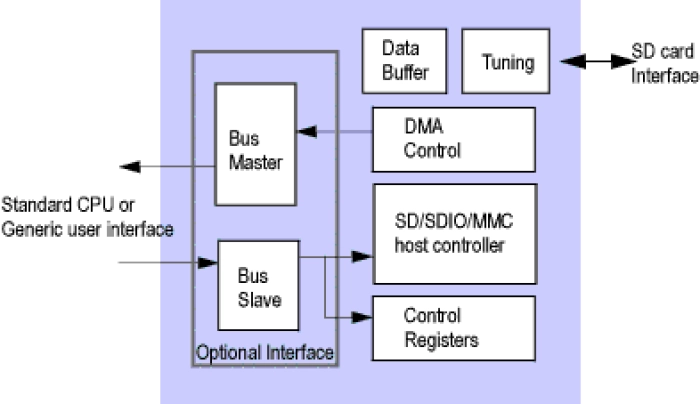

Key Features

Host controller for SD and SDIO 3.0 with options to support eMMC 4.41 interface.
Allows host CPU to access SD and MMC devices.
Simple user interface optimized for on-chip bus connection.
Choices of AHB, AXI, APB, PLB, Wishbone, Avalon, SH4 and generic user interface.
Supports Ulta High Speed UHS interface including SDR104, SDR50, DDR50, SDR25 and SDR12.
Supports programable clock mode to allow data transfer running at UHS while base clock at lower speed to save power.
Input tuning and share bus configuration.
Auto CMD23 command support.
Supports SDMA operation for high speed data transfer without CPU polling of data.
Implement SD host controller standard register set for support of standard SDIO development tool.
8-bit data transfer when eMMC option is included.
Supports all standard SD/SDIO bus drivers including Windows and Linux.
Fully programmable access timing.
Hardware handling of CRC error detection and interrupt generation.
Supports multi-function SD cards, command suspend, resume, and block transfers.
Option to operate the user interface and card interface at different clock domains.
Direct mapping of host address space to card address space.
Designed for ASIC and FPGA implementations.
Fully static design with edge triggered flip-flops.
Differentiating Features

Choices of AXI, AHB, APB, PLB, Wishbone, Avalon, SH4 and generic user interface.
Option to support eMMC 4.41 with 8-bit bus interface.
Program clock mode allows the controller to operate at slow FPGA device and achieve UHS transfer rate at the same time.
Asynchronous user interface.

Availability

Now
