RISC-V Application Processor

Overview

The NOEL-V is a synthesizable VHDL model of a processor that implements the RISC-V architecture. The NOEL-V can be implemented as a dual-issue processor, allowing up to two instructions per cycle to be executed in parallel.

The NOEL-V is designed for space applications, with a high-performance and fault-tolerant design.  Built on the RISC-V architecture, NOEL-V offers flexibility and customization options, allowing SoC designers to create solutions tailored to their specific needs. Software developers have access to a vast library of existing software and tools to help them create the perfect solution.

‍The NOEL-V has been adopted in several ASIC products. Furthermore it is flight-proven as its capabilities have been demonstrated in Earth orbit.

Architecture

The NOEL-V can be implemented as a dual-issue processor, allowing up to two instructions per cycle to be executed in parallel. To support the instruction issue rate of the pipeline, the NOEL-V has advanced branch prediction capabilities. The cache controller of the NOEL-V supports a store buffer FIFO with one cycle per store sustained throughput, and wide AHB slave support to enable fast stores and fast cache refill.

The NOEL-V is interfaced using the AMBA 2.0 AHB bus (but a subsystem with Level-2 cache and AXI4 backend is also available) and supports the IP core plug&play method provided in our IP library (GRLIB). The processor can be efficiently implemented on FPGA and ASIC technologies and uses standard synchronous memory cells for caches and register file.

Key Features

  • RISC-V 32-bit and 64-bit architecture
  • Hardware multiply and divide units
  • Compressed (16 bit) instruction support
  • Atomic instruction extension
  • 32/64 bit floating point extensions using non-pipelined area efficient FPU or high-performance fully pipelined IEEE-754 FPU
  • Machine, supervisor and user mode.
  • RISC-V standard MMU with configurable TLB
  • RISC-V Hypervisor (H) extension (adding virtual supervisor mode and virtual user mode)
  • Fault Tolerance
  • Robust and fully synchronous single-edge clock design
  • Large range of software tools: compilers, kernels and debug monitors
  • High Performance*: CoreMark: 4.03** / 4.69*** CoreMark/MHz
    • *For HPP64 configuration. CoreMark score varies with processor configuration, microarchitectural changes, and toolchains.
    • **-march=rv64im-mabi=lp64 -O2 -funroll-all-loops -funswitch-loops -fgcse-after-reload-fpredictive-commoning -mtune=sifive-7-series-finline-functionsfipa-cp-clone -falign-functions=8 -falign-loops=8 -falign-jumps=8 --param max-inline-insns-auto=20 using GCC 9.2.0 under RTEMS 5
    • *** Using "#define ee_u32 int32_t" in core_portme.h, as is common for 64 bit RISC-V.
  • RISC-V standard APLIC
  • RISC-V standard PMP (physical memory protection)
  • RISC-V standard external debug support
  • RISC-V watchdog
  • RISC-V IOMMU
  • Support for RISC-V bit manipulation extensions: Zba/b/c/s, Zbkb/c/x
  • Support for counter interrupt RISC-V extensions: Sscofpmf
  • Support for cache management operations RISC-V extension: Zicbom
  • Support for Sstc RISC-V extension
  • Advanced dual-issue in-order pipeline
  • Dynamic branch prediction, branch target buffer and return address stack
  • Four full ALUs, two of them late in the pipeline to reduce stalls
  • Separate instruction and data L1 cache (Harvard architecture) with snooping
  • Optional L2 cache: 256-bit internal, 1-4 ways, 16 KiB - 8 MiB
  • Native AMBA 2.0 AHB bus interface, 32-, 64- or 128-bit wide
  • Subsystem including processor and Level-2 cache with AXI4 backend also available.

Block Diagram

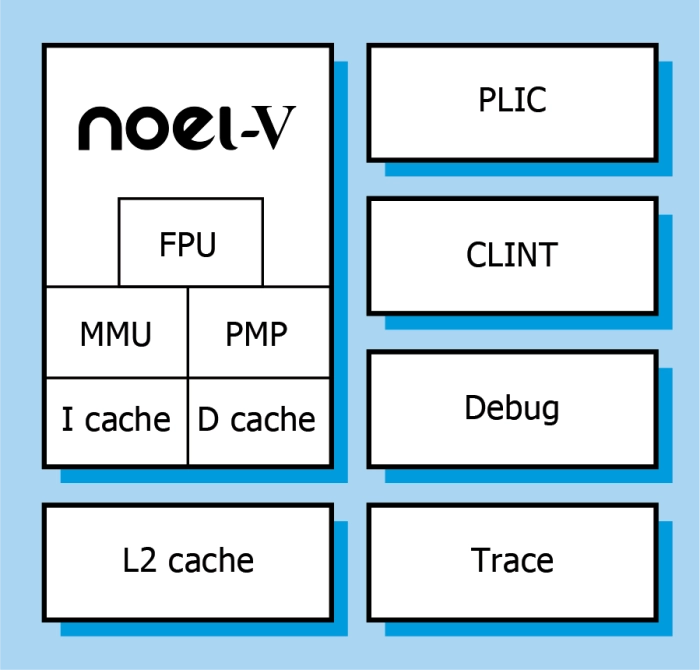

RISC-V Application Processor Block Diagram

Technical Specifications

Maturity
NOEL-V will be released on December 25 2019.
