Register, Configuration and Control Bus

Overview

A2R provides an interconnection mechanism between control registers in an ASIC design and any number of control devices; CPUs, debug ports etc.. The bus is especially suited for synthesizable designs. It is specifically developed to meet the challenges of long interconnect delays in large System-on-chip designs and can be tailored to match system clock rates.

Key Features

  • Data Paths
    • Multiplexed address and data bus for minimum interconnect
    • 8, 16, 32 … or any width of address and data bus
    • Custom bus widths may be specified
  • Protocols
    • Simple master and target interfaces
    • Clock rate independent protocols
    • Single protocol for all performance levels
    • Multiple master and target capability
    • Multi-segment capability
    • Direct attach of ARC host and auxiliary buses
  • Addressing
    • Customizable assignment of address space
    • ARC debug compatible
  • Devices
    • Any number of transaction initiators
    • Any number of transaction targets
  • Arbitration
    • User configurable/customizable
    • Base algorithms provided : Round-robin
  • Fabric
    • Parallel OR-gate multiplexing
    • Serial point-to-point
    • Pipelined point-to-point
  • Bridges (Gateways)
    • On-chip between segments
  • Interfaces
    • Initiator and Target TAPs: Simple synchronous protocol, Clock domain transition support
    • Industry standard veneers: A2B, OCP-IP; VSIA (BVCI, PVCI), AMBA on request
  • Extensions
    • Parity protection
    • Error protocol
    • User-defined bus fields
    • Bus monitoring

Benefits

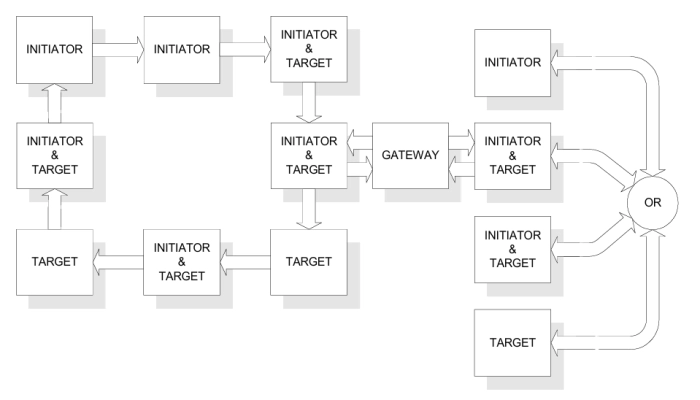

  • Local interconnections between sub-modules are often configured using an OR structure as the A2R fabric and inter-module connections are configured to use a ring structure. This point-to-point topology can then be pipelined so that all sections of the ring settle within a single clock cycle this allows the A2R to be configured such that only single cycle operations exist and no false path or multi-cycle paths exist which significantly eases timing closure in large SoC designs.

Deliverables

  • Verilog RTL
  • Verilog Testbench
  • Specification

Technical Specifications

Foundry, Node
0.18um 0.13um
Maturity
Version 2.0
Availability
Now
×
