The QSPI master core is easy to use, simple to work with, quick to operate, and reliable under all conditions. It supports the majority of QSPI devices standard from a standard AXI4 slave interface. It also features support for Octal SPI, Dual SPI (DSPI), and SPI interface. The core is designed so that a user design may immediately access memory from the QSPI device in SPI mode, or alternatively issue a command to switch to any other mode. Additionally, a DMA command may be issued to copy memory from the QSPI device to anywhere else on the bus.
QSPI Master IP
Overview
Key Features
- Compliant with AMBA AXI3/4 and AXI4-lite protocols. An APB control port interface is available if desired instead of the AXI4-lite control port interface.
- User configurable clock frequency support
- Designed to support all leading NOR FLASH devices.
- Configurable bus width, Full & Narrow AXI burst support
- DMA for maximum bus throughput
- Supports 24 or 32b addressing and User selectable commands.
- Supports Execute in Place flash access protocols
- Backwards compatible with SPI and Dual SPI devices

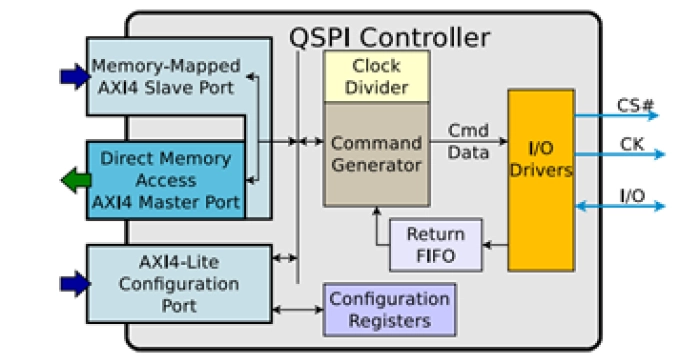

Block Diagram
