Pipeline SDRAM Controller
Key Features
- Designed with synthesizable HDL for ASIC and PLD synthesis.
- Supports both discrete SDRAM chips and PC100/133 SDRAM DIMM.
- Supports register mode and non-register mode SDRAM DIMM.
- Supports industrial standard SDRAM from 64Mbit to 512Mbit device sizes.
- Page hit detection to support multiple column accesses within the same row.
- Pipeline access allows continuous data bursting.
- Programmable memory size: 4, 8, 16 and 32 bits per SDRAM.
- Programmable word size:16, 32 and 64 bits.
- Supports all burst lengths: 1, 2, 4, 8 and full page.
- Zero wait state burst data transfer.
- Programmable SDRAM access timing parameters.
- Supports multiple external SDRAM banks.
- Automatic refresh generation with programmable refresh intervals.
- Programmable memory configuration registers.
- Differentiating Features
- Power saving mode.
- ECC or parity support.

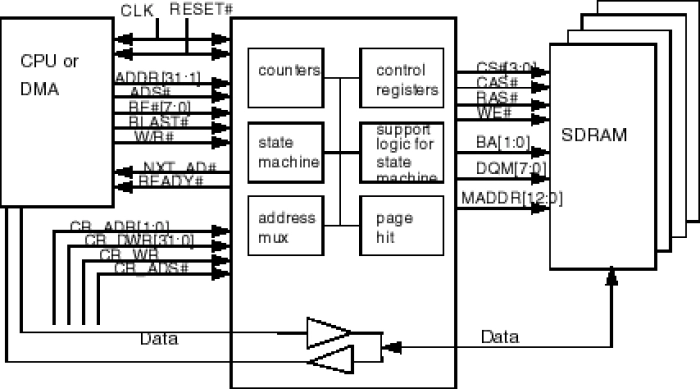

Block Diagram
Technical Specifications
Short description
Pipeline SDRAM Controller
Vendor
Vendor Name
Foundry, Node
ASIC and FPGA
Availability
now
