The 1394 OVC is a fully documented, off-the-shelf component using the Open Verification Methodology for quickly enabling functional verification. The OVM based application programming interface (API) supports the IEEE standards of both SystemVerilog and e, enabling the powerful combination of field-proven verification capabilities, a multi-language interface, and scaleable OVM methodology.
The OVM-compliant 1394 OVC supports IEEE 1394 PHY specification at the Physical side (PHY side) and Transaction Layer specification at the Host side. Data transmission can be configured with different speeds (100, 200 or 400 Mbps) and can configured with different transfers (Asynchronous or Isochronous transactions).
The 1394 Function Controller OVM-compliant OVC verifies designs that conforms to standard IEEE 1394 specifications. The 1394 OVC consists of a complete set of verification capabilities like sequencer, checker, coverage metrics and SystemVerilog API interfaces within the OVM. The 1394 OVC combines built-in coverage analysis, self-checking test benches and coverage metrics to significantly reduce the time spent verifying a design under test
The 1394 OVC test bench is composed of reusable verification environments called universal verification components (UVCs). A UVC is an encapsulated, ready-to-use, configurable verification environment for an interface protocol, a design submodule, or a full system.
The 1394a-2000 Link Layer Controller Core provides data packet delivery service for Asynchronous and Isochronous (real-time) data transmission. It performs arbitration request, packet generation and checking as well as data acknowledgement transmission.
Verification Methodology:

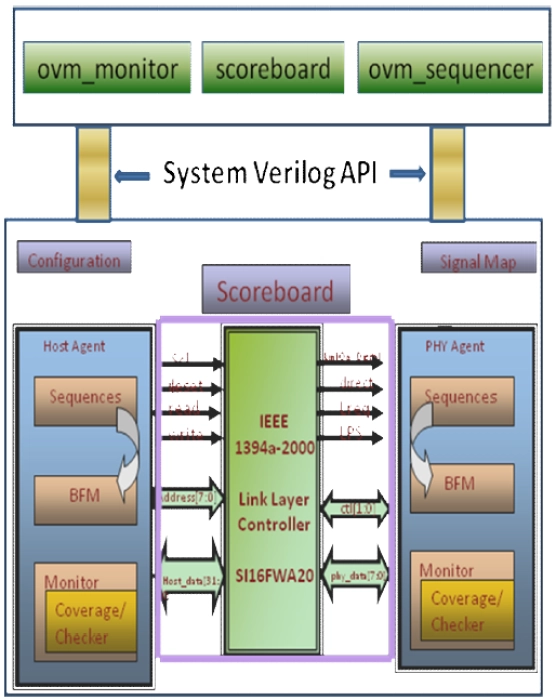

An IEEE 1394 Link Layer Controller OVC with OVM compliant System Verilog API, initiates the IEEE 1394 PHY layer, Transaction layer and Application layer compliant transactions. These transactions are applied to the DUT.
The OVM compliant System Verilog API of ebased 1394 Link Layer Controller UVC contains configuration file to define the verification environment, Monitor to serve for adding checks and Sequences to control the test scenarios.
The e based UVC Scoreboard, compares the data collected at the HOST or the PHY Receiver with the data driven from the PHY or HOST Transmitter respectively, thus verifying adherence to the IEEE 1394 Protocol.
The e based UVC Monitor collects data items from the respective HOST or PHY agent interface and e based UVC Coverage module operates based on events and data collected by the Monitor. The Monitor, Scoreboard and Coverage is enhanced with OVM UVC components.
