General Purpose PMU - Thermal shutdown and overvoltage protected SilTerra 0.18 um

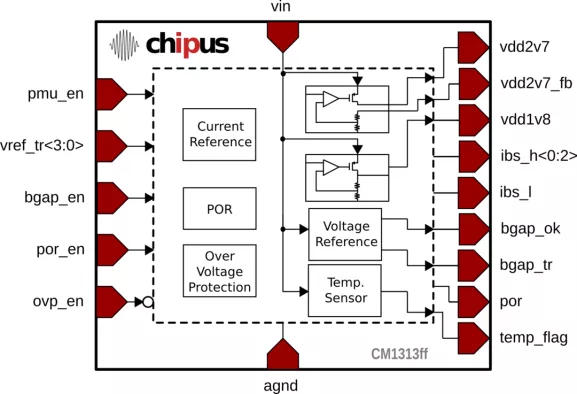

This macro-cell is a Power Management Unit (PMU) core designed for Silterra 0.18µm C18GH5 CMOS technology in TO (thick oxide) and HP (thin oxide) process. The circuit has two linear voltage regulators (one of which has an external feedback connection), internal voltage and bias current generators, built-in poweron-reset (POR), thermal shutdown and overvoltage protection. An internal voltage reference provides a range of voltages for the sake of flexibility of the IP. The core is easily retargeted to any other CMOS technology with R-poly devices.
